NEW HYUNDAI WIA HD3100SYA
Overview
Description

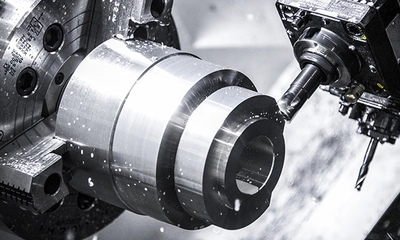

OverviewThe HD3100SYA features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.
Specifications
Hyundai Wia Fanuc i Series - Smart Plus controller
Main spindle: Max. 3,500 rpm Belt driven spindle
34.9 HP (26kW) (S3 25%) / 541.4 lbf.ft torque at 338 rpm]
10" 3-jaw chuck
⌀3.2" (⌀81mm) bar capacity
Sub spindle: Max. 4,500 rpm Belt driven spindle
10.1HP (7.5kW) (S2 15min) / 62.7 lbf.ft torque at 845 rpm
6" 3-jaw chuck
⌀16.5" (⌀420mm) Max. turning diameter
29.9" (760mm) turning length
Live Tool: Max. 5,000 rpm
7.4 HP (5.5kW) (30min) / 51.6 lbf.ft torque at 750 rpm
30℃ slanted one-piece bed structure
Box guideways
945 IPM (24 m/min) X and 1,181 IPM (30 m/min) Z&ZB axis rapid traverse
394 IPM (10 m/min) Y axis rapid traverse
BMT65P 12 station 24 position turret
Y-axis with 4.7" (120mm) stroke
Tool size: 3/4" / ⌀2" (?20mm / ⌀50.8mm)
87 PSI coolant system [145 PSI_Opt.]
Double Pre-Tensioned Ball screws
Chip Conveyor
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Parts catcher (Sub)
Full contouring C-axis
Max Turn Dia: 16.5 in.
Max Turn Len: 29.9 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 34.9
Spindle Torque: 541.4
Rapids(X): 945
Rapids(Z): 394
Travel(X): 10.4
Travel(Z): 32.7
No of Tools: 12
