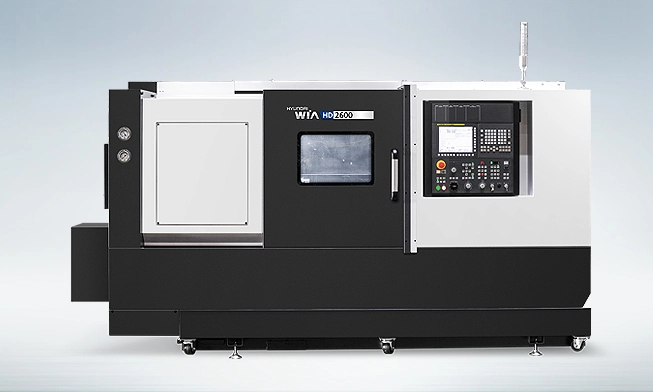

NEW HYUNDAI WIA L2600Y

OverviewThe L2600Y features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
Ø16.5" (Ø 420mm) Max. turning diameter
29.9" (760mm) turning length
4,000 rpm built in spindle
30HP (22kW) / 441.8 lbf. ft torque
10" chuck
Ø3.2" (Ø81mm) bar capacity
5,000 rpm
7.4HP (5.5kW) / 34.7lbf.ft torque

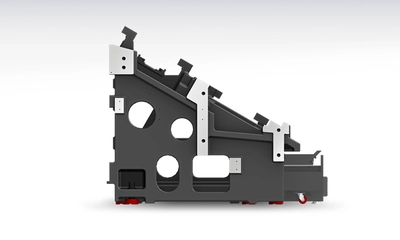

30° slanted one-piece bed structure

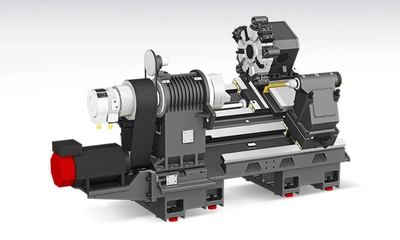

Box guideways
1,181 IPM(30m/min) X, Z, ZB and 394 IPM (10 m/min)) Y axis rapid speed
Auto Tool setter
Programmable Tail Stock (Tow-along type)
Tool size(24position) : 3/4."/Ø 2" (19.05mm/Ø50.8mm)
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws
Chip Conveyor (47" discharge height)
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Auto parts catcher (Main)
Y-axis with 4.8" stroke
BMT 65P 12 station turret
Full contouring C-axis

Max Turn Dia: 16.5 in.
Max Turn Len: 29.0 in.
Chuck Size: 10 in.
Spindle RPM: 4,000
Spindle HP: 30
Spindle Torque: 442
Rapids(X): 1181
Rapids(Y): 394
Rapids(Z): 1181
Travel(X): 10.4
Travel(Y): 4.7
Travel(Z): 32.7
No of Tools: 12
