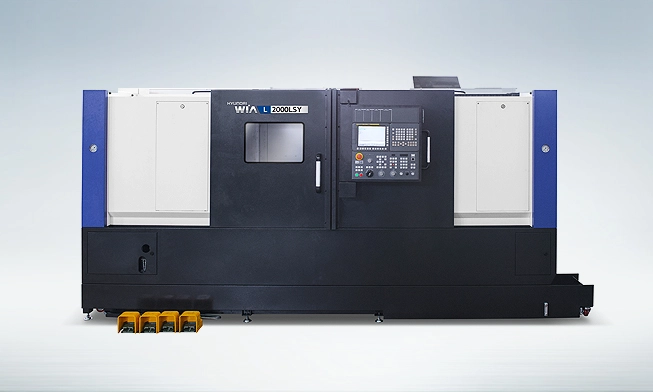

NEW HYUNDAI WIA L2000SY
Overview
Description
OverviewThe L2000SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.
Specifications
Hyundai Wia Fanuc i series - Smart Plus controller
Main spindle:
Max. 5,000 rpm built-in spindle [4,500 rpm_Opt. Belt]
30 HP (22kW) / 264 lbf.ft torque (S3 15%) [25HP (18.5kW) / 314.2 lbf.ft_Opt. Belt]
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
Max. 5,000 rpm built-in spindle [4,500 rpm_Opt. Belt]
30 HP (22kW) / 264 lbf.ft torque (S3 15%) [25HP (18.5kW) / 314.2 lbf.ft_Opt. Belt]
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
Ø16.5" (Ø420mm) Max. turning diameter
20.5" (520mm) turning length
Sub spindle:
Max. 6,000 rpm built-in spindle [4,500 rpm_Opt. Belt]
20 HP (15kW) / 99.6 lbf.ft torque (30min) [15 HP (11kW) / 91.5 lbf.ft_Opt. Belt]
6" 3-Jaw chuck
Ø2.0" (Ø51mm) bar capacity
Max. 6,000 rpm built-in spindle [4,500 rpm_Opt. Belt]
20 HP (15kW) / 99.6 lbf.ft torque (30min) [15 HP (11kW) / 91.5 lbf.ft_Opt. Belt]
6" 3-Jaw chuck
Ø2.0" (Ø51mm) bar capacity
Live Tool :
Max. 5,000 rpm, BMT65
7.4HP (5.5kW) (15 min) / 34.7 lbf.ft torque [10HP (7.5kW) (5 min) / 70.4 lbf.ft]
Max. 5,000 rpm, BMT65
7.4HP (5.5kW) (15 min) / 34.7 lbf.ft torque [10HP (7.5kW) (5 min) / 70.4 lbf.ft]
Y-axis with 4.7" (120mm) stroke
Tool size (24position) : 3/4" / Ø2" (19.05 / Ø50.8mm)
Box guideways
Rapid Speed
X/Y : 1,181 / 394 IPM (30 / 10 m/min)
Z/ZB : 1,181 / 1,181 IPM (30 / 30 m/min)
BMT65 12 station turret
Auto Tool setter
Sub Part Catcher & Main parts catcher preparation
Air part ejector system in sub spindle
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws
Chip Conveyor (38" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 20.5 in.
Max Turn Len: 20.5 in.
Chuck Size: 8 in.
Spindle RPM: 5,000
Spindle HP: 30
Spindle Torque: 264
Rapids(X): 1,181
Rapids(Y): 394
Rapids(Z/B): 394
Rapids(Z): 1,181
Travel(X): 10.4
Travel(Y): 4.7
Travel(Z): 23.2
Travel(Z/B): 23.2
No of Tools: 12
