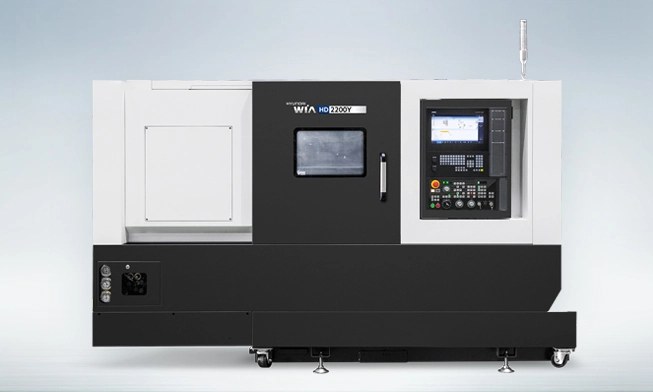

NEW HYUNDAI WIA HD2600SY

OverviewThe HD2200SY/2600SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.

Hyundai Wia Fanuc i series controller
Ø11.8" (Ø 300mm) Max. turning diameter
25.6" (650mm) turning length
Belt type spindle 3,500 rpm
25HP (18.5kW) / 297.4 lbf. ft torque
10" chuck
Ø2.6" (Ø65mm) bar capacity
6,000 rpm Belt type spindle
7.4HP (5.5kW) / 34.5 lbf. ft torque
5" chuck
Live Tool: 6,000 rpm
7.4HP (5.5kW) / 38.7lbf.ft torque
30° slanted one-piece bed structure
Box guideways
945 IPM(24m/min) X,ZB and 1,181 IPM(30m/min) Z
394 IPM (10 m/min)) Y axis rapid speed
Programmable Tail Stock (Tow-along type)
Tool size: 1"/Ø 1.6" (25mm/Ø40mm)
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws
Chip Conveyor
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Auto parts catcher
Y-axis with 4.3" stroke
BMT 55P 12 station turret
Full contouring C-axis

Max Turn Dia: 24 in.
Max Turn Len: 24.0 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 25
Spindle Torque: 295.5
Rapids(X): 945
Rapids(Y): 394
Rapids(Z/B): 394
Rapids(Z): 1181
Travel(Z): 26.8
Travel(Z/B): 26.8
No of Tools: 12
