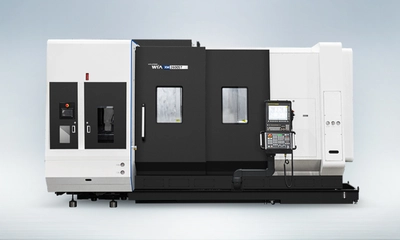

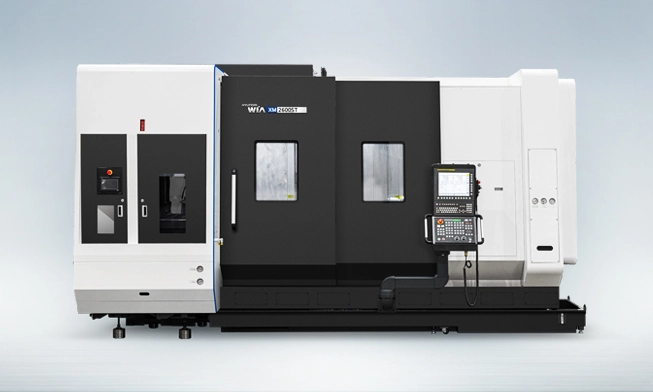

NEW HYUNDAI WIA XM2600ST
Overview
Description
OverviewThe XM2600ST features built-in main & sub-spindles with high output and high torque. The adoption of a milling head with a built-in B axis enables the operator to perform turning and milling works in perfect harmony. And the highly rigid Y-axis structure makes it possible to process diverse shapes. The adaption of CAPTO C6 tool makes it possible to high speed complex machining. HYUNDAI WIA's advanced technological features to provide exceptional value.
Specifications
FANUC 31i-B5 PLUS controller
Spindle (Main / Sub)
Max. RPM (Type) : 4,000 RPM (Built-in)
Max. Power : 40 HP (30kW)
Max. Torque (S3 25%) : 534 lbf.ft
Chuck : 10"
Bar capacity : ⌀3.2" (⌀81mm) / ⌀3.2" (⌀81mm)
Max. turning diameter
B axis : ⌀26" (⌀660mm)
Turret : ⌀16.1" (⌀410mm)
60.6" (1,540mm) turning length

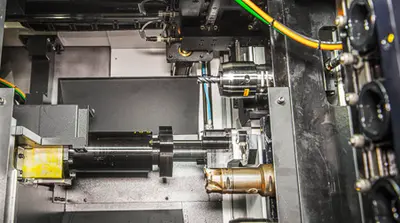

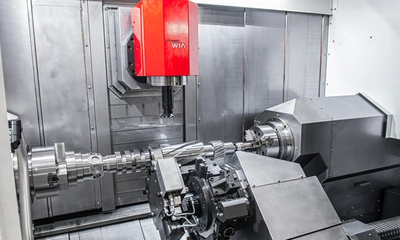

Milling Head
12,000 RPM (Built-in)
Capto C6
Max. 29.5HP (22kW) / 88.5 lbf.ft
B Axis Range : 240? (-120 ~ +120)
Y-axis with +-11.8" (+-150mm) stroke
40 Tools (80 Tools Opt.)

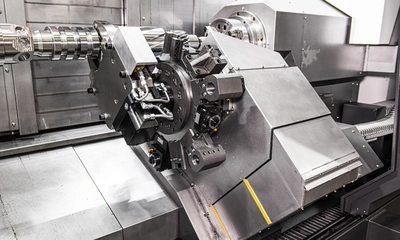

Lower Turret
Tool size(12 position)1" / ⌀1 1/2" (25mm / ⌀40mm)
Live Tool Type / RPM : BMT 65 / 5,000 RPM (Opt.)
Max. 9 HP (6.7kW) / 19.9 lbf.ft torque
High-Speed Roller LM guideways
Rapid Speed
X1 - 1,890 IPM (48 m/min)
Z1 - 1,890 IPM (48 m/min)
Y - 1,417 IPM (36 m/min)
X2 - 945 IPM (24 m/min)
Z2 - 1,417 IPM (36 m/min)
A - 1,181 IPM (30 m/min)
87 PSI coolant system (1,015 PSI Opt.)
Double Pre-Tensioned Ball screws
Chip Conveyor (46.8" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 26 in.
Max Turn Len: 60.6 in.
Chuck Size: 10 in.
Spindle RPM: 4,000
Spindle HP: 40
Rapids(X): 1890
Rapids(Y): 1417
Rapids(Z): 1890
Travel(Y): 27.4
Travel(Z): 62.4
No of Tools: 40
