NEW HYUNDAI WIA SE2200LMA
Overview
Description

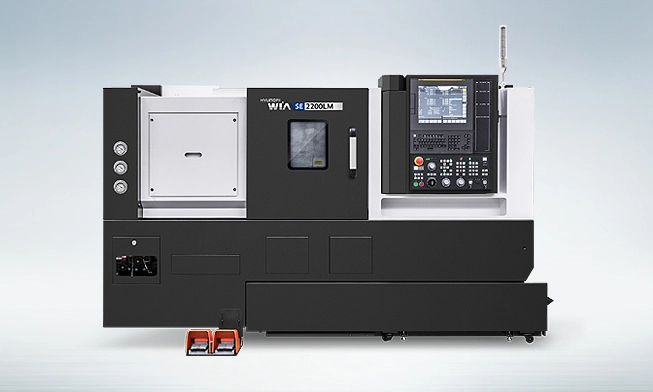

OverviewThe CNC Turning Center SE2200LMA, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance and economic efficiency.
Specifications

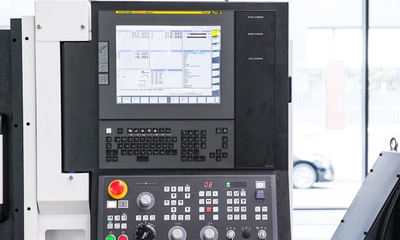

Hyundai Wia Fanuc i series - Smart Plus controller
Fanuc Beta spindle drive and Beta X / Z servo motors
30° slanted one-piece bed structure
Faxt 1,181 IPM (30m/min) X and 1,417 IPM (36m/min) Z axis rapid traverse
Manual Tool setter
Hydraulic NC tail stock
87 PSI coolant system [290 PSI_Opt.]
Spindle override 0% to 150% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Auto Parts Catcher
Max Turn Dia: 11.8 in.
Max Turn Len: 20.8 in.

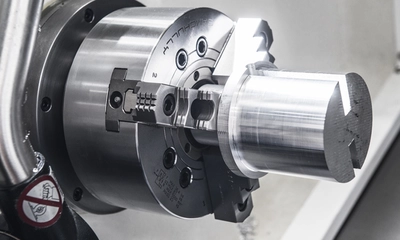

Chuck Size: 6 in.
Spindle RPM: 6,000
Spindle HP: 13.5
Spindle Torque: 114
Rapids(X): 1181
Rapids(Z): 1417
No of Tools: 12
