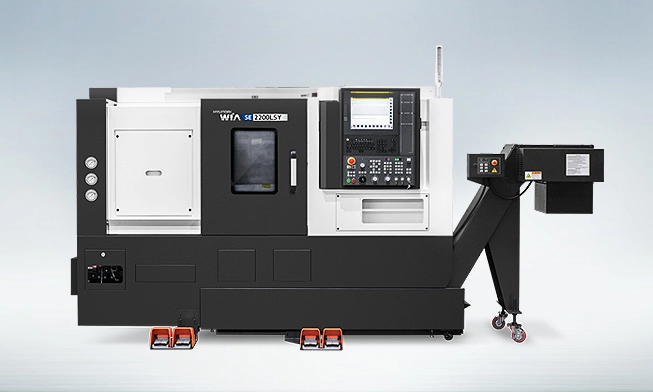

NEW HYUNDAI WIA SE2200Y

OverviewThe SE2200Y series feature a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Roller guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA's advanced technological features to provide exceptional value.

Hyundai Wia Fanuc - Smart Plus controller
Fanuc Beta spindle drive and Beta X / Z servo motors

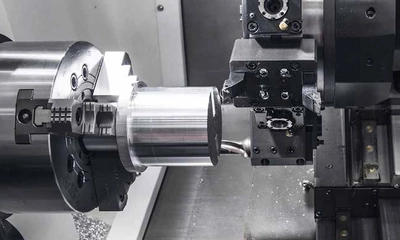

Main spindle:
Max. 4,500 rpm Belt driven spindle
20.1 HP (15 kW) (S2 15min) / 124.6 lbf.ft (169 N.m) torque at 857 rpm
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
Max. 4,500 rpm Belt driven spindle
20.1 HP (15 kW) (S2 15min) / 124.6 lbf.ft (169 N.m) torque at 857 rpm
8" 3-jaw chuck
Ø2.6" (Ø65mm) bar capacity
Ø11.8" (Ø300mm) Max. turning diameter
11.3" (288mm) turning length

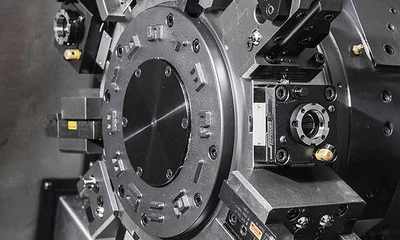

BMT 45P 12 station turret (24position_Opt.)
Y-axis with 4.3" (110mm) stroke
Tool size: 3/4" / Ø1.26" (20mm / Ø32mm)
Live Tool:
Max. 6,000 rpm (BMT 45P)
3.69 HP (2.75 kW)_(S2 15min) / 19.3 lbf.ft (26.2 N.m) torque at 1,000 rpm
30° slanted one-piece bed structure
High-Speed Roller guideways
1,181 IPM (30 m/min) X and 1,417 IPM (36 m/min) Z axis rapid speed
394 IPM (10 m/min) Y axis rapid speed
Hydraulic NC tail stock
87 PSI coolant system [290 PSI_Opt.]
Double Pre-Tensioned Ball screws
Chip Conveyor (47" discharge height)
Separate coolant tank
3 color tower signal light
Full enclosure splash guard
Auto parts catcher
Full contouring C-axis

Max Turn Dia: 11.8 in.
Max Turn Len: 11.3 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 20.1
Spindle Torque: 124.6 lbf. Ft
Rapids(X): 1,181
Rapids(Y): 394
Rapids(Z): 1,417
Travel(X): 8.3
Travel(Y): 4.3
Travel(Z): 22
No of Tools: 12
