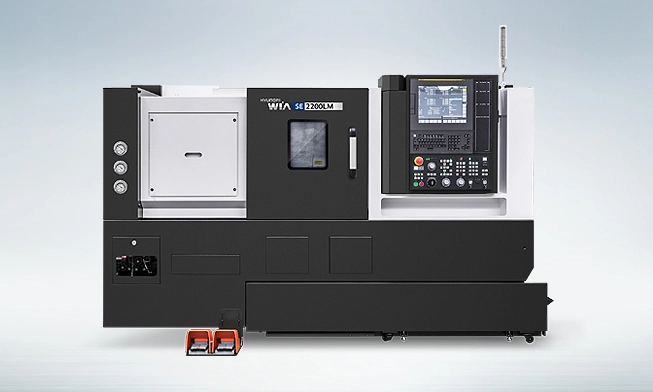

NEW HYUNDAI WIA SE2200M

OverviewThe CNC Turning Center SE2200M Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance and economic efficiency.

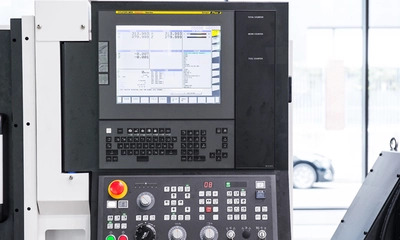

Hyundai Wia Fanuc i series - Smart Plus controller
Fanuc Beta spindle drive and Beta X / Z servo motors
Ø11.8" (Ø300mm) Max. turning Diameter
11.3" (288mm) turning length
Ø2.6" (Ø65mm) Bar capacity
Max. 4,500 RPM Belt driven spindle
20.1 HP (15 kW) spindle motor (S2 15min)
Spindle Torque 123.2 lbf.ft (167 N.m) at 857 rpm

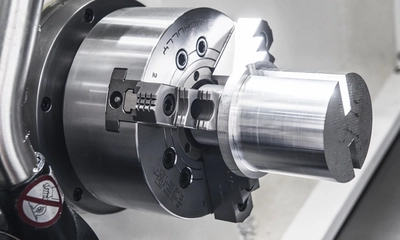

8" 3-jaw chuck
30° slanted one-piece bed structure
Faxt 1,181 IPM (30m/min) X and 1,417 IPM (36m/min) Z axis rapid traverse
Manual Tool setter
Tool size: ?0.79" / Ø1.26" (?20mm / Ø32mm)

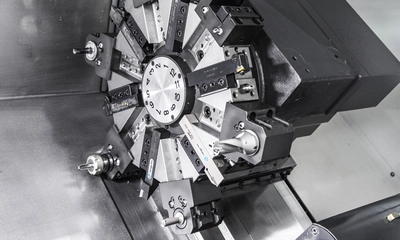

Live Tool: Max 6,000 rpm (BMT45P)
Hydraulic NC tail stock
87 PSI coolant system [290 PSI_Opt.]
Spindle override 0% to 150% (10% Unit)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Auto Parts Catcher

Max Turn Dia: 11.8 in.
Max Turn Len: 11.3 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 20.1
Spindle Torque: 123.2 lbf.ft
Rapids(X): 1,181
Rapids(Z): 1,417
Travel(X): 8.3
Travel(Z): 13.4
No of Tools: 12
