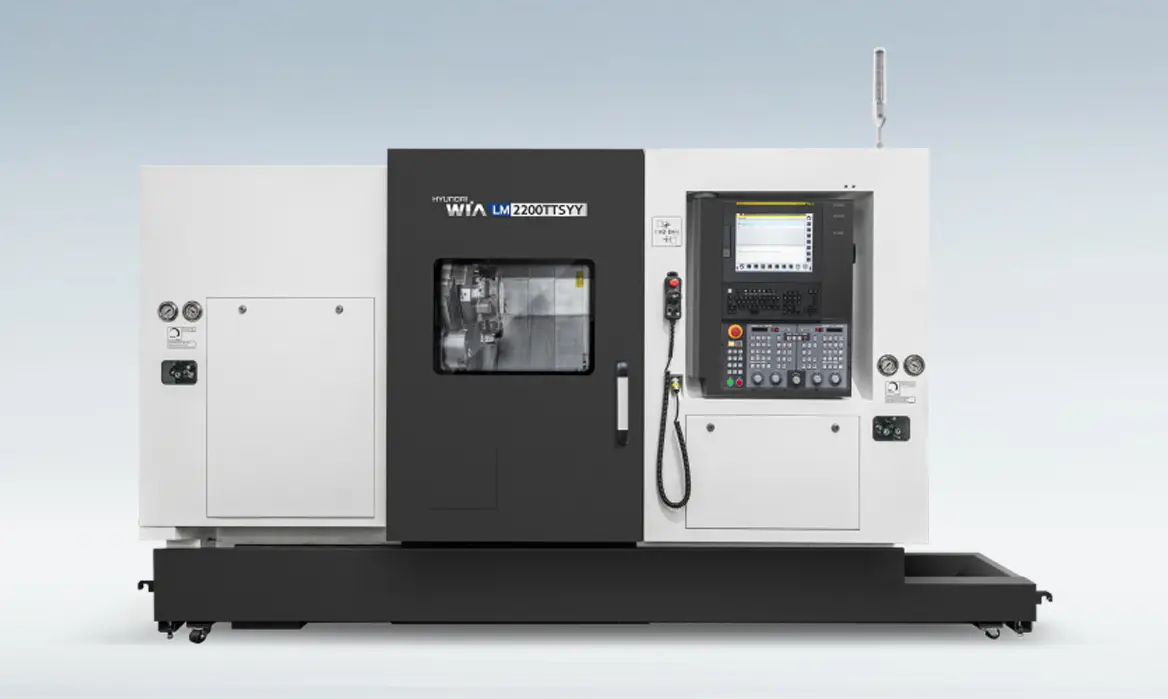

NEW HYUNDAI WIA LM2200TTSYY
Overview
Description
OverviewThe Hyundai WIA LM2200TTSYY is a high-performance multitasking turning center designed to complete complex parts in a single setup. Featuring twin spindles, twin turrets, and dual Y-axis capability, it delivers maximum productivity and reduced cycle times.
Specifications
Y-axis on both turrets (not just upper)
Enables simultaneous top & bottom milling
Balanced cutting forces
Faster cycle times + more complex part capability
Main + sub spindle for part transfer
Front and back machining in one cycle
Eliminates second operations and handling
Two turrets cutting simultaneously
Live tooling on both turrets
Reduced cycle time and increased output
Turning + milling + drilling + tapping
C-axis control on both spindles
5,000 RPM live tooling
Complete parts in one setup

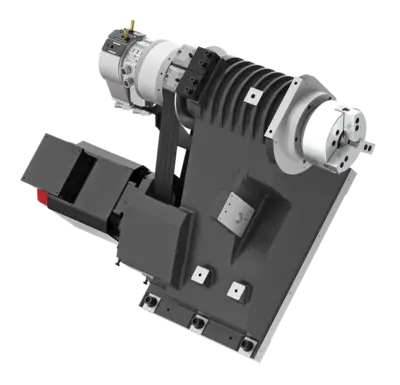

One-piece 45 degree slant bed
Box ways (X/Y) for heavy cutting
Roller guides (Z) for speed
Superior surface finish and stability
Max Turn Dia: 9.06 in.
Max Turn Len: 9.06 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 25
Rapids(X): 787
Rapids(Y): 394
Rapids(Z): 1417
Travel(X): 6.5
No of Tools: 24
