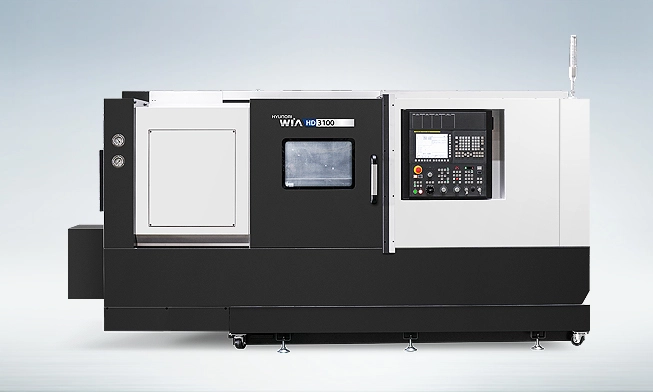

NEW HYUNDAI WIA HD3100
Overview
Description
OverviewThe CNC Turning Center HD3100 Serie, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD3100 are designed with Box Guideway and providing more heavy duty cutting performance.
Specifications
Hyundai Wia Fanuc i series controller
Ø19.7" (Ø 500mm) Max. turning diameter
30.7"(780mm) Turning length
Ø4" Bar capacity
Powerful 35 HP (26kW) spindle motor
Torque 828.3 lbf-ft. (1,123 N.m)
12" chuck

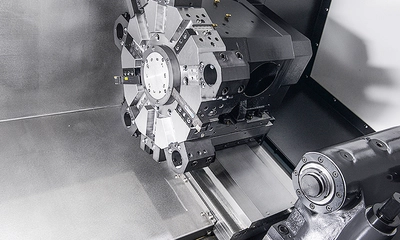

Servo Turret (12 position)
A2-11 spindle nose

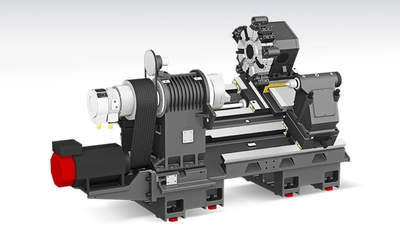

30° slanted one-piece bed structure
Box Guideways
24m/min (944 IPM) X, and 30m/min, (1,181 IPM) Z rapid traverse
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Programmable Tail Stock
87 PSI coolant system (290 PSI-opt)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 19.7 in.
Max Turn Len: 30.7 in.
Chuck Size: 12 in.
Spindle RPM: 2,800
Spindle HP: 35
Spindle Torque: 828.3
Rapids(X): 945
Rapids(Z): 1181
Travel(X): 10.4
Travel(Z): 32..7
No of Tools: 12
