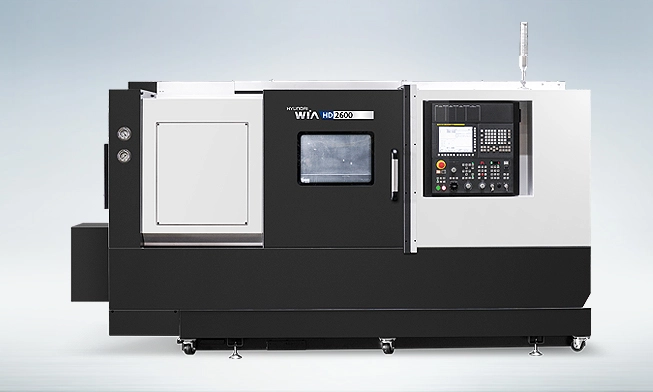

NEW HYUNDAI WIA HD2600
Overview
Description

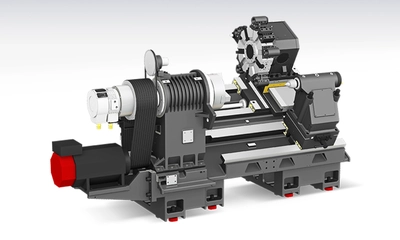

OverviewThe CNC Turning Center HD2600 Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD2600 are designed with Box Guideway and providing more heavy duty cutting performance.
Specifications
Hyundai Wia Fanuc i series controller
Ø18.1" (Ø 460mm) Max. turning diameter
24.1"(613mm) Turning length
Ø3.2" Bar capacity
Powerful 35 HP (26kW) spindle motor
Torque 541.4 lbf-ft. (734 N.m)
10" chuck
A2-8 spindle nose
RPM 3,500 spindle

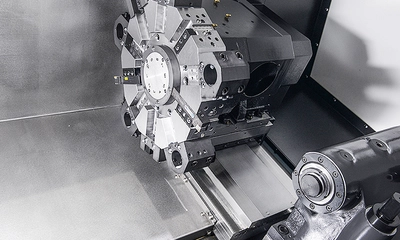

Servo Turret (12 position)
30° slanted one-piece bed structure
Box Guideways
24m/min (944 IPM) X, and 30m/min, (1,181 IPM) Z rapid traverse
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Programmable Tail Stock (Tow-along type)
87 PSI coolant system (290 PSI-opt)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 25.9 in.
Max Turn Len: 25.9 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 35
Spindle Torque: 541.4
Rapids(X): 945
Rapids(Z): 1181
Travel(X): 10.4
Travel(Z): 26.8
No of Tools: 12
