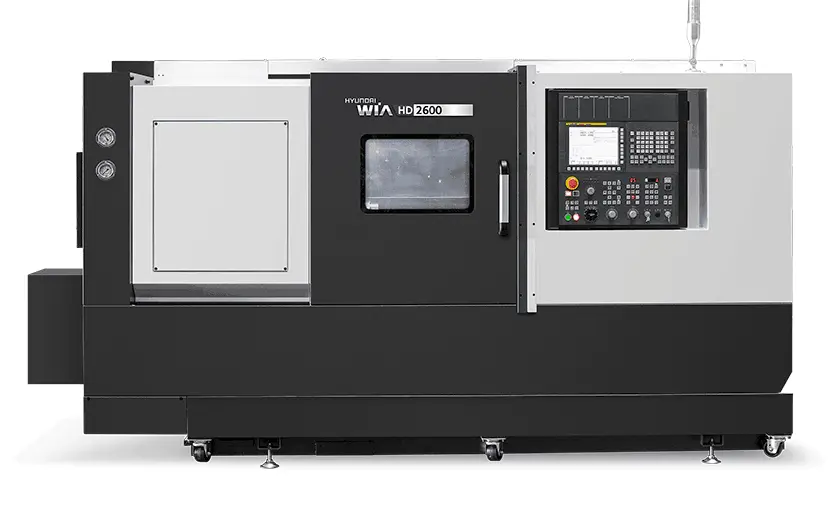

NEW HYUNDAI WIA HD2600LE
Overview
Description
OverviewThe CNC Turning Center HD2600/LE Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD2600/LE are designed with Box Guideway and providing more heavy duty cutting performance.
Specifications
Hyundai Wia Fanuc i series controller
Ø18.1" (Ø 460mm) / [Ø19.7" (Ø 500mm)] Max. turning diameter
30.7" (780mm) Turning length
Ø3.2" (Ø 81mm) Bar capacity
Powerful 35 HP (26kW) spindle motor
Torque 541.4 lbf-ft. (734 N.m)
10" chuck
A2-8 spindle nose
RPM 3,500 spindle
Servo Turret (12 station) [10 station_opt.]
30° slanted one-piece bed structure
Box Guideways
944 IPM (24m/min) X and 1,181 IPM (30m/min) Z axis rapid traverse
Manual Tool setter
Tool size: 1" / Ø 2" (25mm / Ø50mm)
Programmable Tail Stock (Tow-along type)
87 PSI coolant system (290 PSI-opt)
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (47" discharge height)
3 color tower signal light
Full enclosure splash guard
Max Turn Dia: 18.1 in.
Max Turn Len: 30.7 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 35
Spindle Torque: 541.4 lbf-ft
Rapids(X): 945
Rapids(Z): 1,181
Travel(X): 10.4
Travel(Z): 32.7
