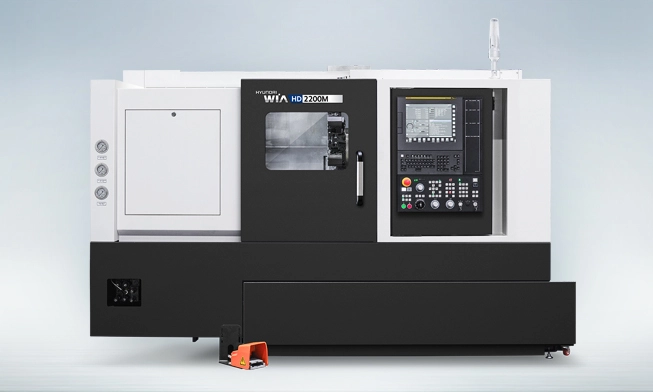

NEW HYUNDAI WIA HD2200C

OverviewThe CNC Turning Center HD2200 Series, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD2000 are designed with Box Guideway and providing more heavy duty cutting performance.

Hyundai Wia Fanuc i series controller
Ø15" (Ø 380mm) Max. turning diameter
21.7" Turning length
Ø3.2" Bar capacity
Powerful 25 HP (18.5kW) spindle motor
High torque 260.5 lbf-ft.
HD2200C: 297.7 lbf.ft
10" chuck
3,500 RPM
A2-8 spindle nose

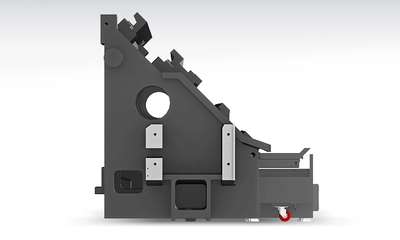

45° slanted one-piece bed structure
Box guideways
24m/min (944 IPM) X, and 30m/min, (1,181 IPM) Z rapid traverse
Manual Tool setter
Tool size: 1."/Ø 1.6" (25mm/Ø40mm)
Programmable Tail Stock (Tow-along type)
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (42" discharge height)
3 color tower signal light
Full enclosure splash guard

Max Turn Dia: 15 in.
Max Turn Len: 21.7 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 25
Spindle Torque: 300
Rapids(X): 945
Rapids(Z): 1181
Travel(X): 8.5
Travel(Z): 22.8
No of Tools: 12
