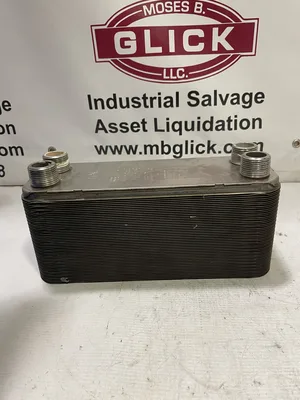

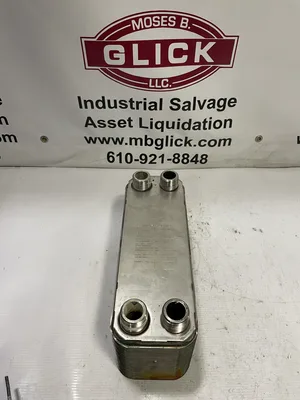

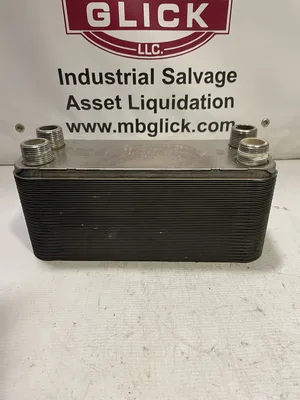

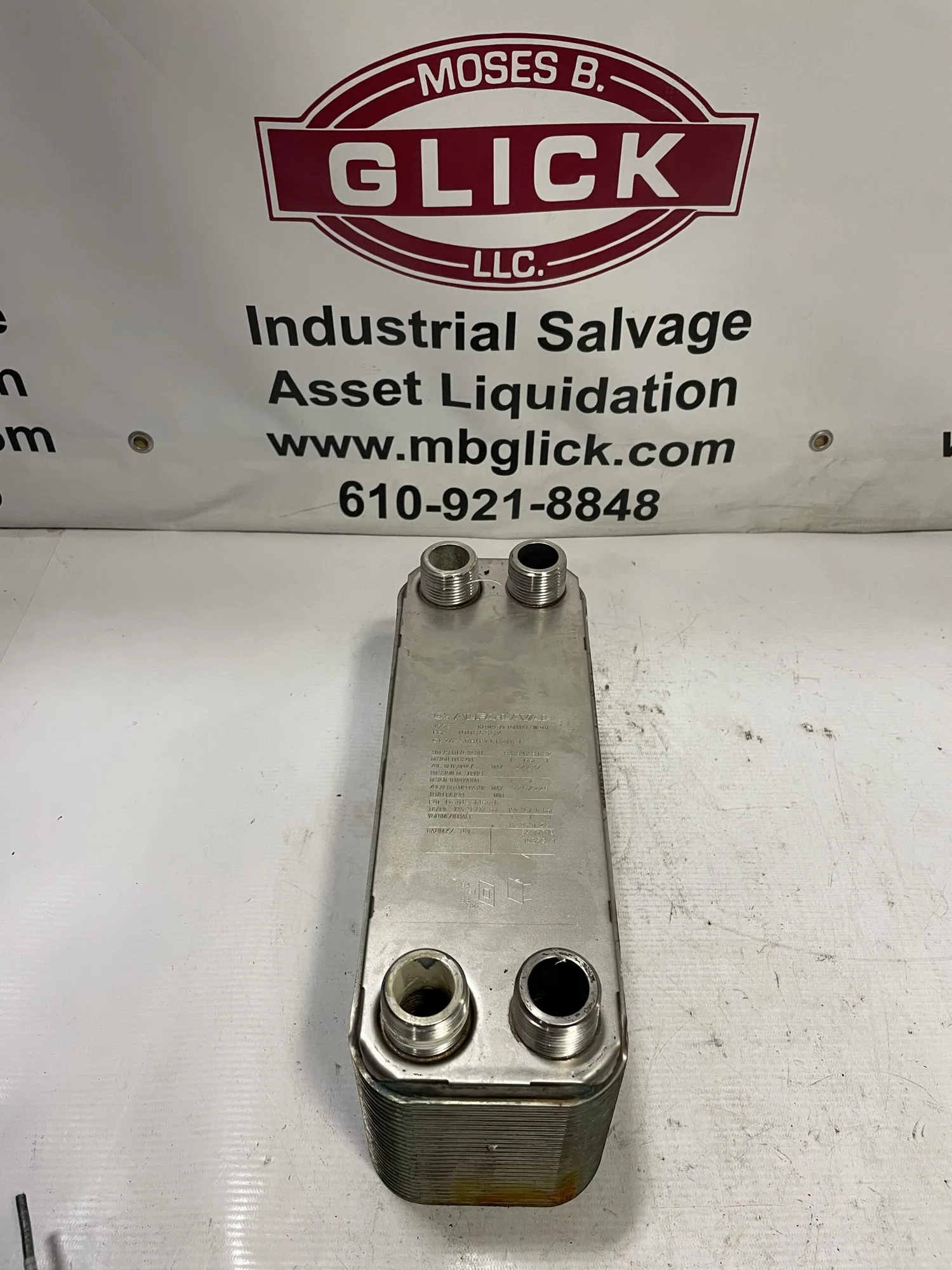

ALFA-LAVAL CB26-50H Stainless Steel Brazed Plate Heat Exchanger 1.20L 27bar

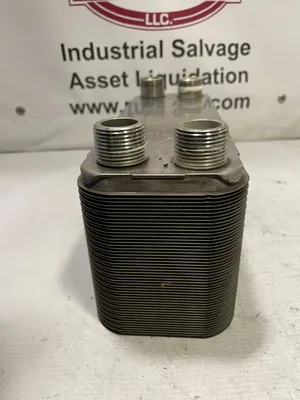

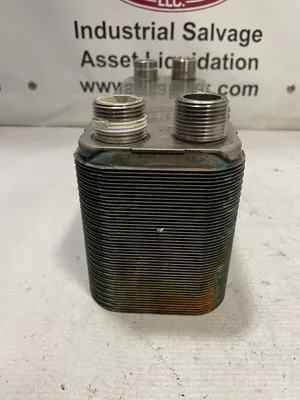

HAS 26 PLATES AND 5-1/4” THREADED PORTS
The Alfa Laval CB26-50H is a type of compact brazed plate heat exchanger designed for efficient heat transfer in various heating, cooling, and industrial processing applications. Below is a detailed overview:
General Features of the Alfa Laval CB26-50H
Construction:

Made with high-quality stainless steel plates brazed together using copper or nickel, ensuring durability and leak-tight performance.
Compact design with no gaskets, making it suitable for high-pressure and high-temperature environments.
Made with high-quality stainless steel plates brazed together using copper or nickel, ensuring durability and leak-tight performance.
Compact design with no gaskets, making it suitable for high-pressure and high-temperature environments.
Applications:

HVAC systems: Ideal for air conditioning, heat pumps, and boiler systems.
Industrial processes: Efficient for heat recovery, oil cooling, and refrigeration.
Renewable energy: Used in solar heating systems or geothermal applications.
HVAC systems: Ideal for air conditioning, heat pumps, and boiler systems.
Industrial processes: Efficient for heat recovery, oil cooling, and refrigeration.
Renewable energy: Used in solar heating systems or geothermal applications.
Capacity and Specifications:

CB26 refers to the model line, and 50H indicates the configuration and specific capacity.
Designed for high-efficiency thermal performance in compact spaces.

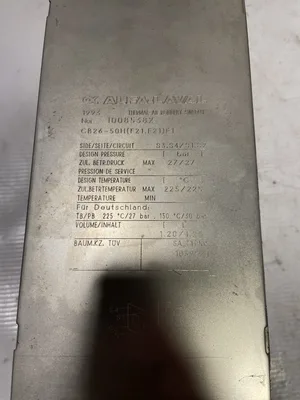

Operating range typically includes pressures up to 30 bar (435 psi) and temperatures up to 225°C (437°F) depending on the configuration.
Flow rate and heat transfer capacity vary depending on the number of plates and system setup.
CB26 refers to the model line, and 50H indicates the configuration and specific capacity.
Designed for high-efficiency thermal performance in compact spaces.
Operating range typically includes pressures up to 30 bar (435 psi) and temperatures up to 225°C (437°F) depending on the configuration.
Flow rate and heat transfer capacity vary depending on the number of plates and system setup.
Advantages:

Efficiency: Offers high heat transfer rates due to the optimized plate design.
Durability: Withstands harsh conditions with minimal maintenance.
Compact Size: Space-saving design ideal for tight installations.
Environmentally Friendly: Reduces energy consumption through optimized thermal performance.
Efficiency: Offers high heat transfer rates due to the optimized plate design.
Durability: Withstands harsh conditions with minimal maintenance.
Compact Size: Space-saving design ideal for tight installations.
Environmentally Friendly: Reduces energy consumption through optimized thermal performance.
Customization:

Available in various configurations to meet specific flow and temperature requirements.
Options for different brazing materials (e.g., nickel for corrosive environments).
Available in various configurations to meet specific flow and temperature requirements.
Options for different brazing materials (e.g., nickel for corrosive environments).
Applications of the CB26-50H
Heating Systems: Acts as a primary heat exchanger in district heating or radiant floor heating systems.
Cooling Systems: Efficiently transfers heat in chillers or process cooling systems.
Process Engineering: Provides thermal management in food, chemical, and pharmaceutical industries.

Weight: 23 lbs
Dimensions: 17 × 9 × 11 in
