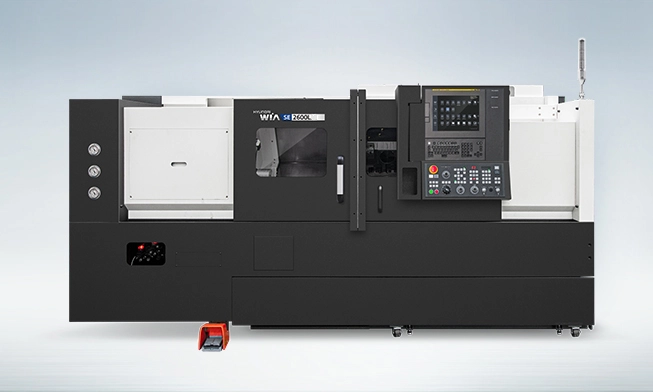

NEW HYUNDAI WIA SE2600L

OverviewThe CNC Turning Center SE2600, designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance and economic efficiency.

Hyundai Wia FANUC i-Series Smart Plus controller
FANUC Beta spindle drive and Beta X/Z servo motors
Maximum turning diameter: 18.1 in (460 mm)
Maximum turning length: 43.0 in (1091 mm)
Bar capacity: 3.2 in (81 mm)
3,500 RPM belt-driven main spindle
24.8 HP (18.5 kW) spindle motor, S3 15 percent duty
Spindle torque: 347.3 lb-ft (470.9 Nm) at 375 RPM
10 in 3-jaw chuck
30 degree slant, one-piece cast iron bed structure
Rapid traverse rates: X-axis 1,181 IPM (30 m/min), Z-axis 1,181 IPM (30 m/min)
Tool capacity: 1 in square turning tools, 1.97 in (50 mm) boring bars
Hydraulic NC tailstock with MT4 taper
87 PSI coolant system (145 PSI optional)
Spindle speed override range: 0 to 150 percent in 10 percent increments
Massive cast iron machine base

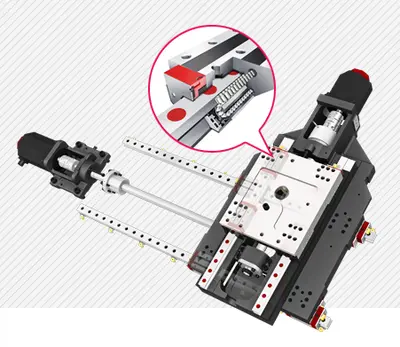

Pre-tensioned, double-anchored ball screws
Rigid tapping capability
Program and data protection key switch
Chip conveyor with 47 in discharge height
Three-color tower signal light
Full enclosure splash guard

Max Turn Dia: 14.2 in.
Max Turn Len: 31.5 in.
Chuck Size: 10 in.
Spindle RPM: 3,500
Spindle HP: 24.8
Rapids(X): 1181
Rapids(Z): 1181
Travel(X): 8.54
Travel(Z): 31.81
