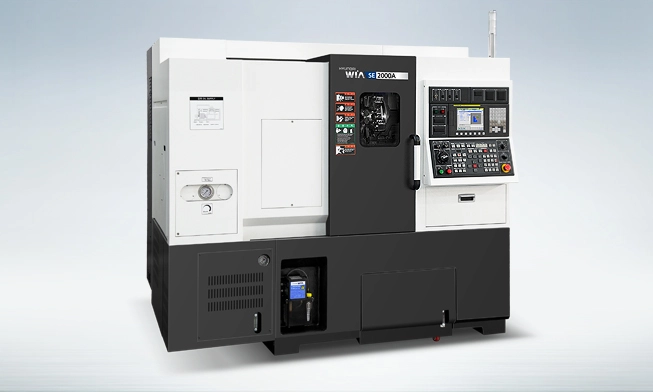

NEW HYUNDAI WIA SE2000PC

OverviewThe CNC Turning Center SE2000PC is designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance and economic efficiency.

Hyundai Wia Fanuc i series controller
Ø13.8" (Ø 350mm) Max. turning Diameter
11" (280 mm) turning length
Ø2.6" (Ø 65mm) Bar capacity
20 HP (15 kW) spindle motor
8" chuck
4,500 RPM spindle
Torque 123.2 lbf.ft.
20 HP (15 kW) spindle motor

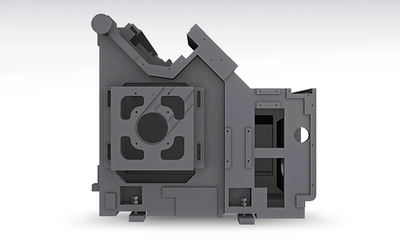

45° slanted one-piece bed structure
945 IPM (24m/min) X, and Z rapid speed
Manual Tool setter
Tool size: 1"/Ø 1.6" (25mm/Ø32mm)
Manual tail stock (Quill Movement Type)
87 PSI coolant system (290 PSI-opt)
Spindle override 50% to 150%
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Rigid tapping
Program and data protection key switch
Chip Conveyor (37" discharge height)
3 color tower signal light
Full enclosure splash guard
Auto Parts Catcher

Max Turn Dia: 13.8 in.
Max Turn Len: 11 in.
Chuck Size: 8 in.
Spindle RPM: 4,500
Spindle HP: 20
Spindle Torque: 70.5
Rapids(X): 945
Rapids(Z): 945
Travel(X): 8.3
Travel(Z): 12.2
No of Tools: 12
