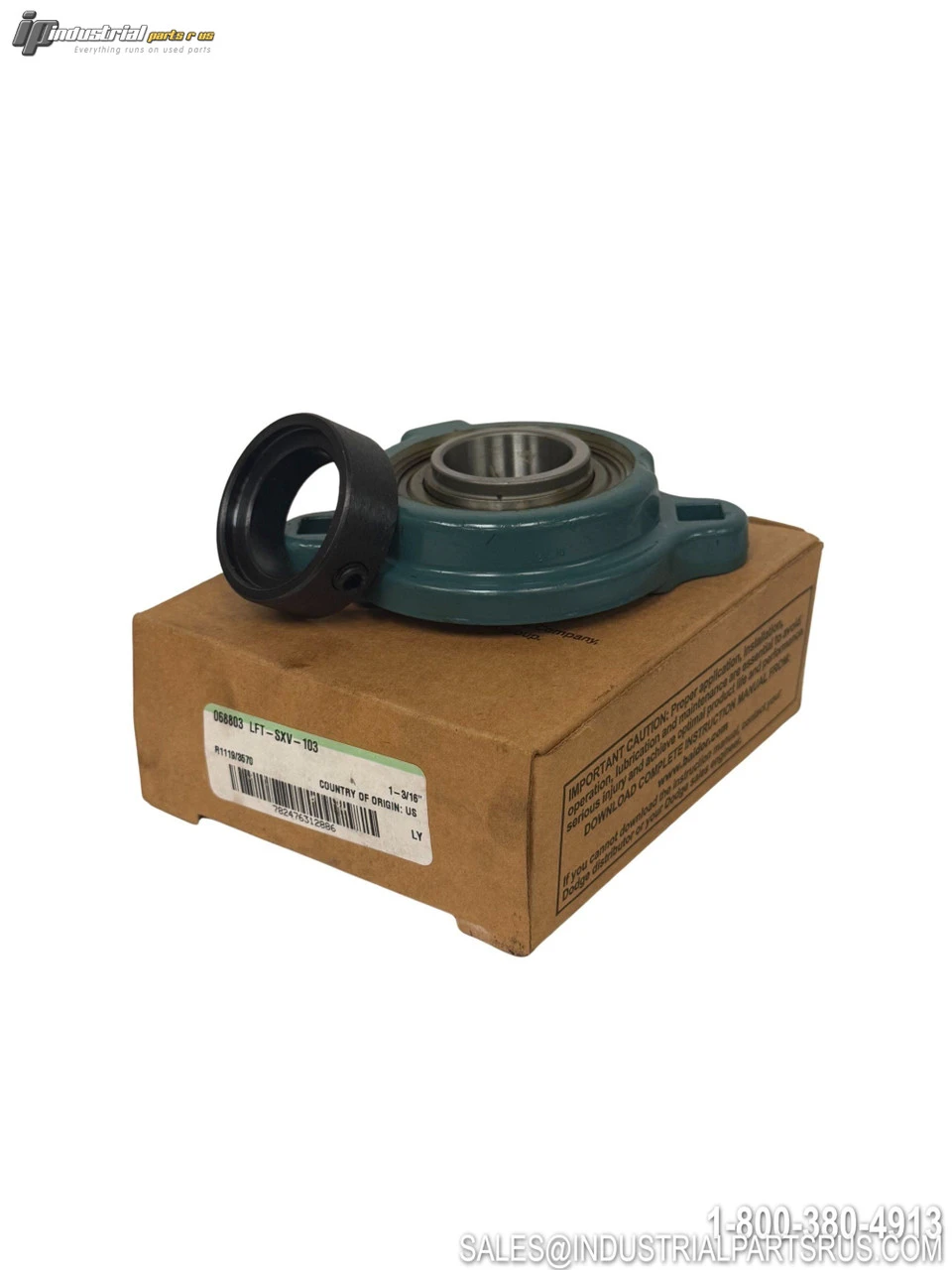

NEW DODGE LFT-SXV-103

The Dodge LFT-SXV-103 is an intermediate duty flange mount ball bearing unit designed for general purpose industrial applications. This unit features a 1-3/16 inch bore diameter, 206 series construction with eccentric collar locking device, and single lip contact seal for reliable operation in various rotating shaft applications.
Specification
Value
Brand
Dodge
Model/Part Number
LFT-SXV-103
Manufacturer Number
124590
Series
206
Bore Diameter
1-3/16 inches
Housing Type
3-Bolt Flange
Bolt Center-to-Center Length
3.56 inches
Bolt Circle Diameter
3.56 inches
Overall Length/Diameter
4.44 inches
Overall Height
2.22 inches
Overall Depth
1.6 inches
Locking Device
Eccentric Collar
Seal Type
Single Lip Contact
Bearing Material
Steel
Housing Material
Alloy
Dynamic Load Rating
4368 lbs
Static Load Rating
2538 lbs
Maximum RPM
6500
Temperature Range
225 to 400°F
Expansion Type
Non-Expansion
Duty Rating
Intermediate Duty
Housing Finish
Powder Coated
We warranty all items for 30 days from date of purchase.

SKU: AI1403
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: Dodge
Part Number: LFT-SXV-103
Shelf: GS 7
Model: LFT-SXV-103
MPN: LFT-SXV-103
Type: Flange Mount Ball Bearing
