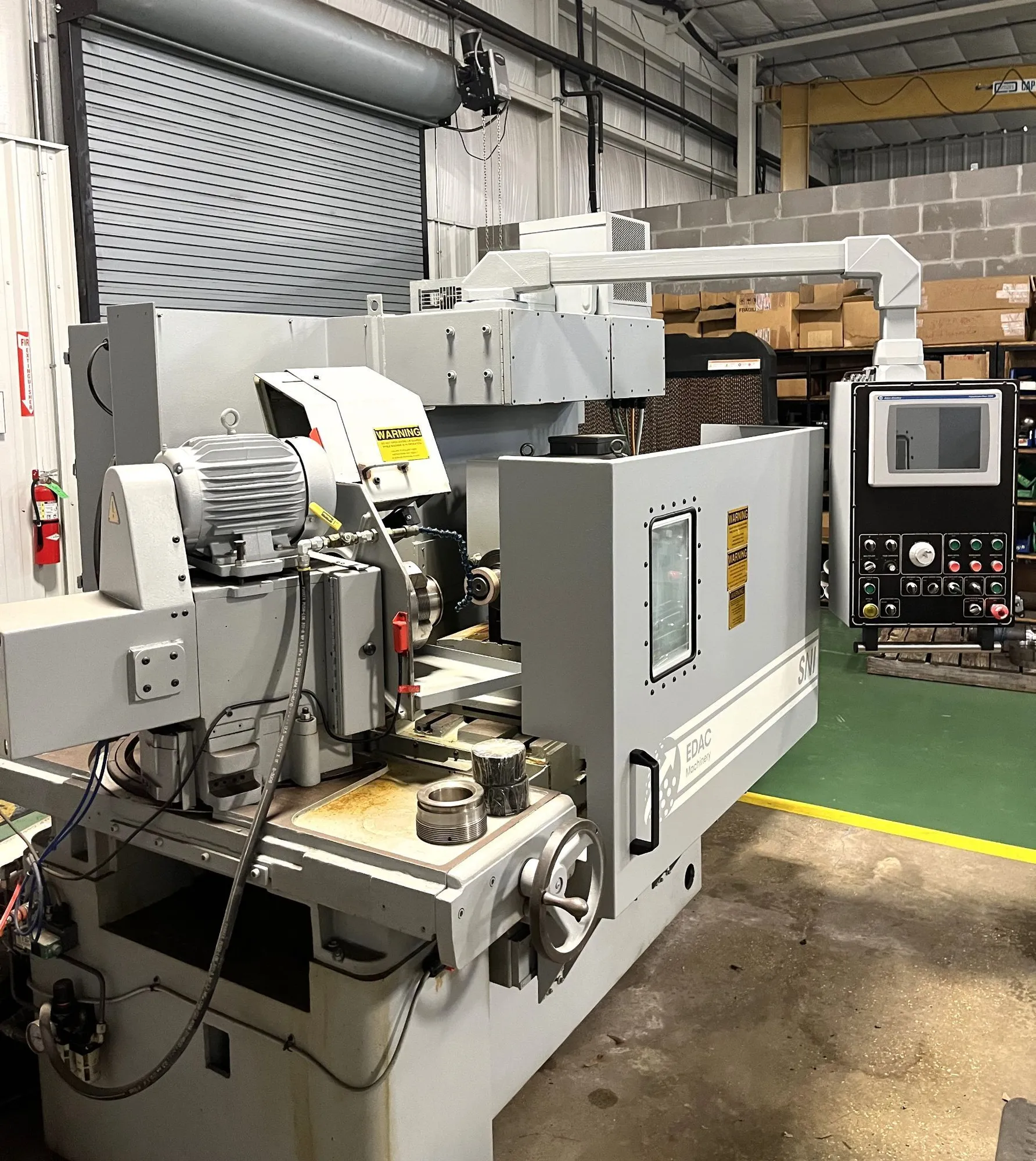

For sale: Used Cincinnati Heald 2EF73 CNC Seat Grinder. Retrofit and Refurbished. Max swing over workhead guard 22", grinding stroke 16", workhead swivel up to 90 degrees, workhead speed 6,000 RPM. Equipped with Allen Bradley PanelView Plus 1000 CNC control.
| MAX SWING OVER WORKHEAD GUARD | 23" | 584.2 mm |
| MAX SWING ID SPINDLE TO MACHINE FRAME | 20" | 508 mm |
| WORKHEAD SWIVEL | UP TO 90 DEGREES | UP TO 90 DEGREES |
| GRINDING STROKE | 16" | 406.4 mm |
| WORKHEAD SPEED | 500 RPM | 500 RPM |
| WHEEL HEAD SPEED | 6,000 RPM | 6,000 RPM |
| TRAVEL - LONG | 20" | 508 mm |
| Control | CNC (ALLEN BRADLEY) | CNC (ALLEN BRADLEY) |
ALLEN BRADLEY PANELVIEW PLUS 1000 CNC CONTROL 2-XIS CNC CONTROL
6000 RPM SPINDLE REBUILT BY GROS-ITE INDUSTRIES
KINETIX 6500 SERVO DRIVES ON X AND Z AXES
ALLEN-BRADLEY POWERFLEX 525 HARDWARE
THIS CINCINNATI-HEALD GRINDER WAS REBUILT AND RETROFIT BY SNI (SERVICE NETWORK INC) IN 2014. ELECTRICS AND CONTROL ARE ENTIRELY NEW AS OF 2014 FOR A COST OF $233,000.
TWO MACHINES AVAILABLE AT SAME LOCATION: ONE SET UP FOR SEAT GRINDING, THE OTHER FOR BALL GRINDING.
