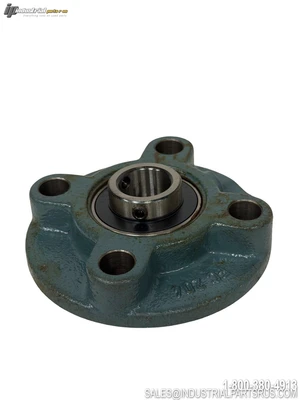

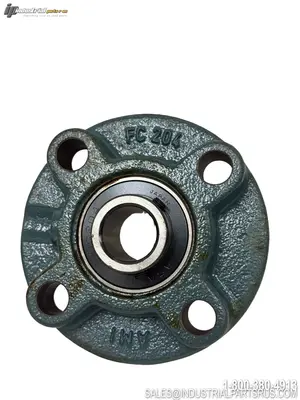

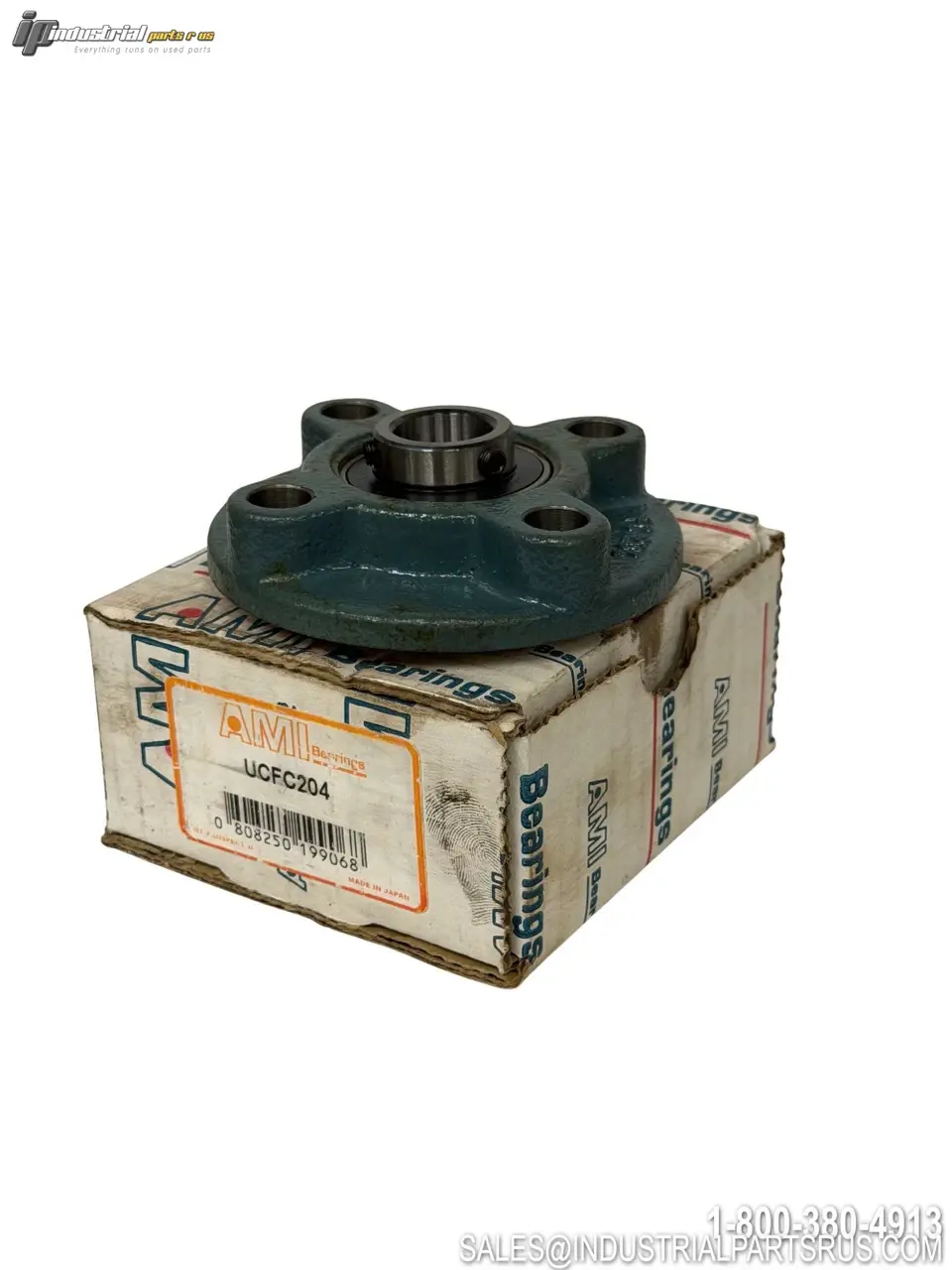

NEW AMI UCFC204

The AMI UCFC204 is a 4-bolt piloted flange mounted ball bearing unit featuring a 20mm bore diameter and cast iron housing. This standard duty pillow block bearing includes contact seals with flingers for protection against contaminants and is designed for reliable performance in industrial applications.
Specification
Value
Brand
Ami
Model/Part Number
Ucfc204
Manufacturer
AMI Bearings, Inc.
Bearing Insert Type
UC204
Bore Diameter
20 mm
Housing Material
Cast Iron
Bearing Material
Chrome Steel
Mounting Type
4-Bolt Piloted Flange
Locking Device
Set Screw
Overall Length
100 mm
Bolt Circle Diameter
78 mm
Pilot Diameter
62 mm
Unit Standoff
28.3 mm
Bolt Size
M10
Dynamic Load Rating
1310 kgf (12.8 kN)
Static Load Rating
680 kgf (6.6 kN)
Bearing Insert
UC204
Housing Number
FC204
Series
UCFC
Seal Type
Contact Seal with Flinger
Duty Type
Standard Duty
Length Through Bore
31 mm
Weight
0.79 kg
Expansion Type
Non-Expansion (Fixed)
Lubrication
Relubricatable
Bore Type
Straight
We warranty all items for 30 days from date of purchase.

SKU: AI1406
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Material: Chrome Steel
Manufacturer: Ami
Part Number: UCFC204
Shelf: GS 7
Bore Diameter: 20 mm
Model: UCFC204
MPN: UCFC204
Type: Pillow Block
