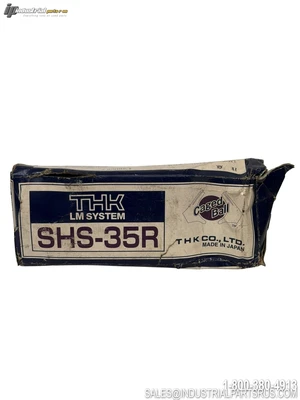

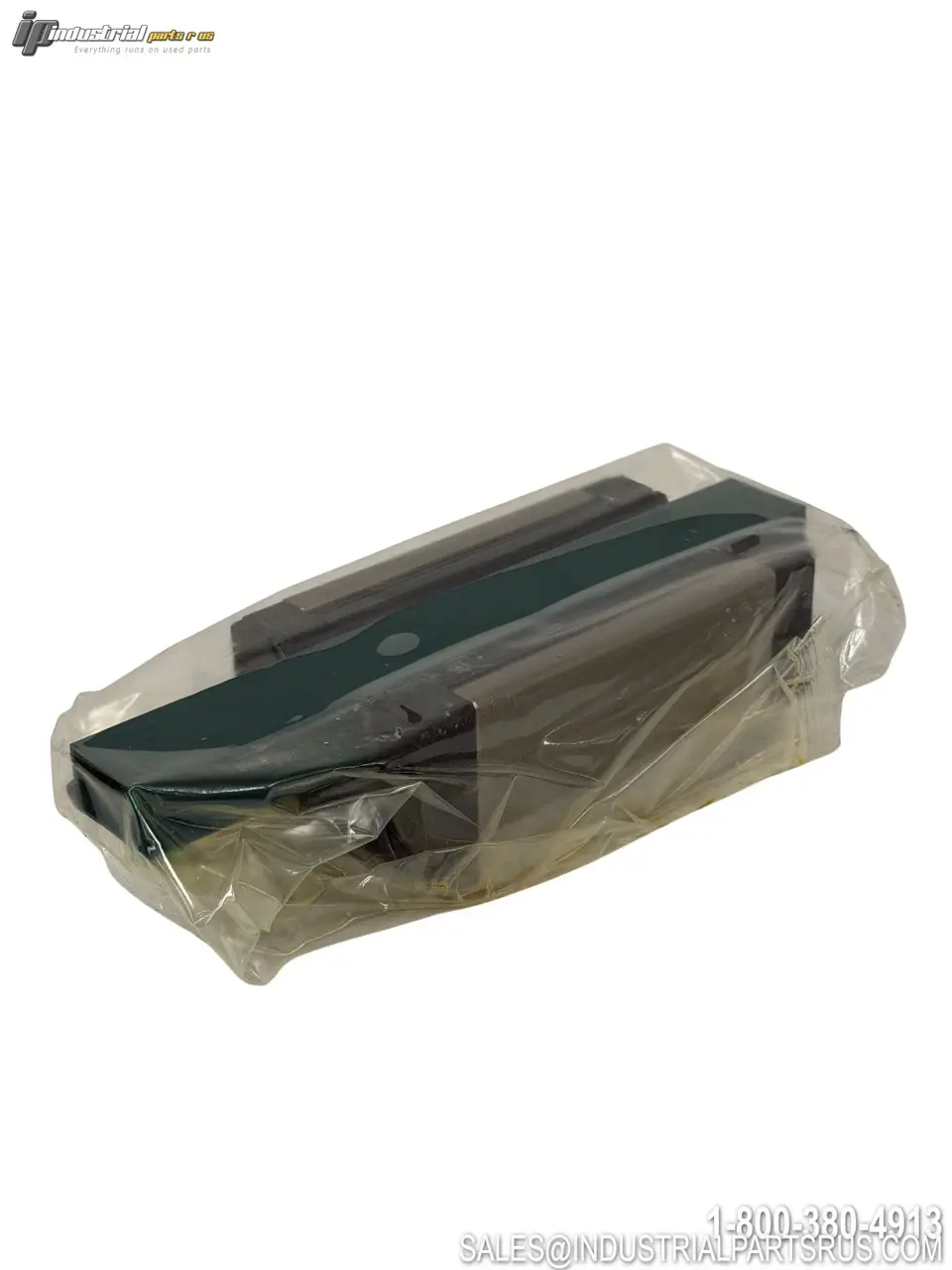

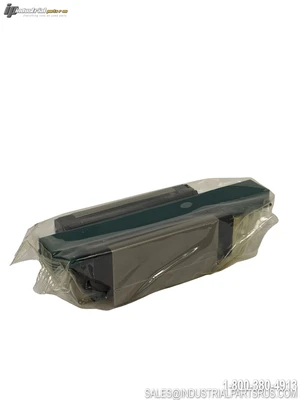

NEW THK SHS-35R

The THK SHS-35R is a linear guide block from THK's SHS series caged ball linear motion guide system. This precision linear bearing provides smooth, accurate linear motion with a 4-way equal load design that allows mounting in any orientation. It features a caged ball design for extended service life and is ideal for automation equipment, CNC machines, and precision positioning systems.
Specification
Value
Brand
THK
Model/Part Number
SHS-35R
Product Type
Linear Guide
Series
SHS
Block Height (H)
55mm
Block Width (W)
70mm
Block Length (L)
122mm
Block Width Long (WR)
152mm
Rail Size
35mm
Rail Height (HR)
50mm
Rail Width (WR)
50mm
Total Height (KR)
72mm
Mounting Bolt
M8×12
Center Distance (S)
93mm
Center Distance Long (SR)
123mm
Distance to Center Height (K1)
14.7mm
Distance to Center Width (B)
47.5mm
Mounting Hole Spacing (T)
15mm
Rail Mounting Hole Spacing
12mm
Grease Nipple Type
B-M6F
Loading Method
4-way Equal Load Type
Block Mounting Direction
Top surface mount
Ball Retainer Type
Caged Ball
LaCS Availability
Available
We warranty all items for 30 days from date of purchase.

SKU: AI1466
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: THK
Part Number: SHS-35R
Shelf: A-3
Model: SHS-35R
MPN: SHS-35R
Type: Linear Guide
