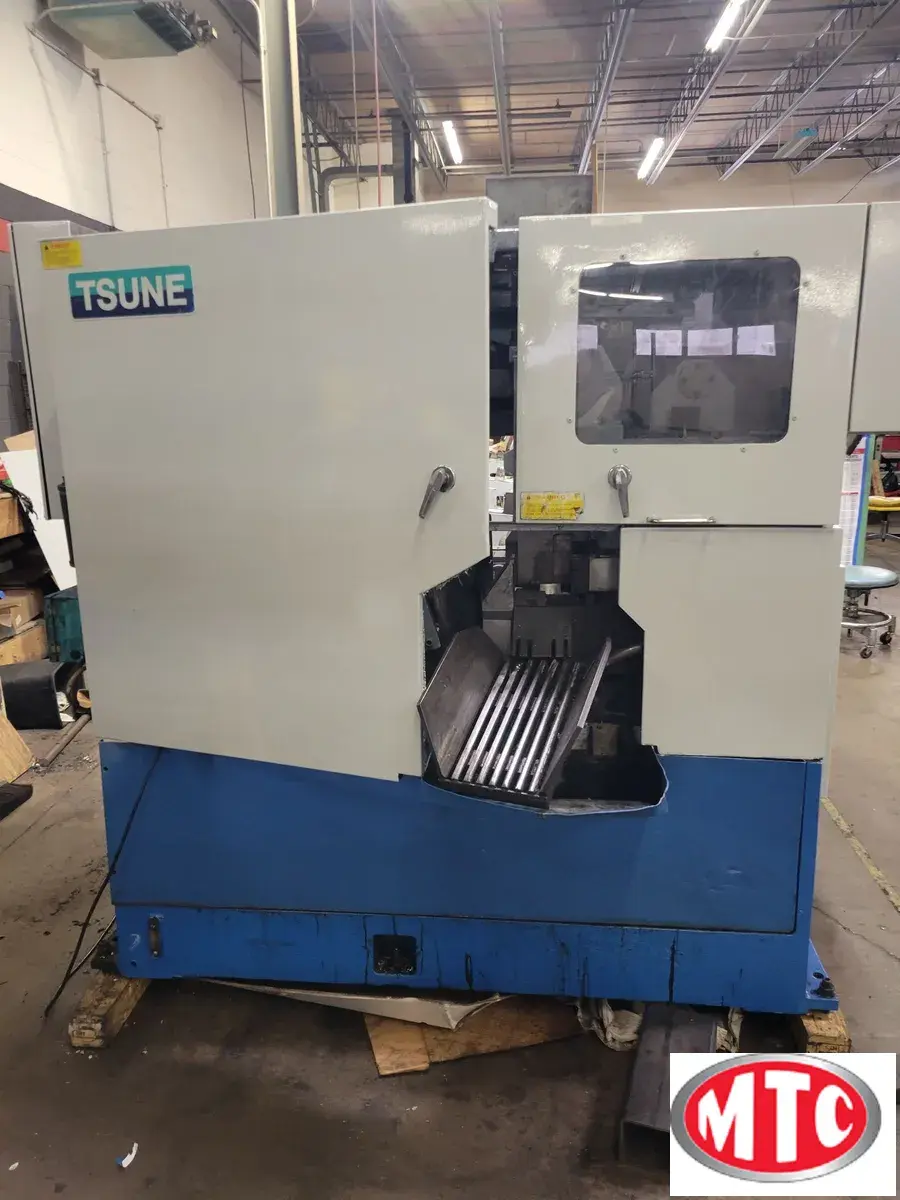

TSUNE MODEL TKSC 101GL CNC COLD SAW WITH 15' MAGAZINE BAR LOADER
New 2001
Description:
Tsune high speed circular saw farces the carbide blade through the work for the fastest straight burr free cut available, with it's magazine bar loader it is perfect for thousands of parts. NO MIST COLLECTOR
EQUIPPED WITH:'
New Carbide tipped blade, Full CNC Control, Carbide saw blade, Carbide Vise jaws and blade guides ,, load meter, Chip conveyor, 12' Magazine bar loader, Vertical clamping, Chip brush, Material end separation chute and all available Manuals
Specifications:
Capacity .6" to 4.33" Steel
Carbide cap. Solid steel .98" to 3"
Capacity cutting round tube 5.12"
Square tube .6" to 4.33"
Carbide saw diameter 360mm/ 14"
HSS saw diameter 420mm/16.5"
Saw head feed type Hydraulic
Material feed one stroke 24"
Shortest cut off (Part length) .4"
Remnant length 3.3"
Blade speeds 12-120 RPM
Loading magazine Incline type
max bar length 20'
Main Saw motor 15 HP
Coolant tank capacity 38 Gallons
Operating Dimensions 305" x 84" x 76" High
Weight 7,850 Lbs.
Shipping Dimensions
machine = 8' 6" x 7' x 6' high
barfeed = 15' x 5' x 4' 6" high
