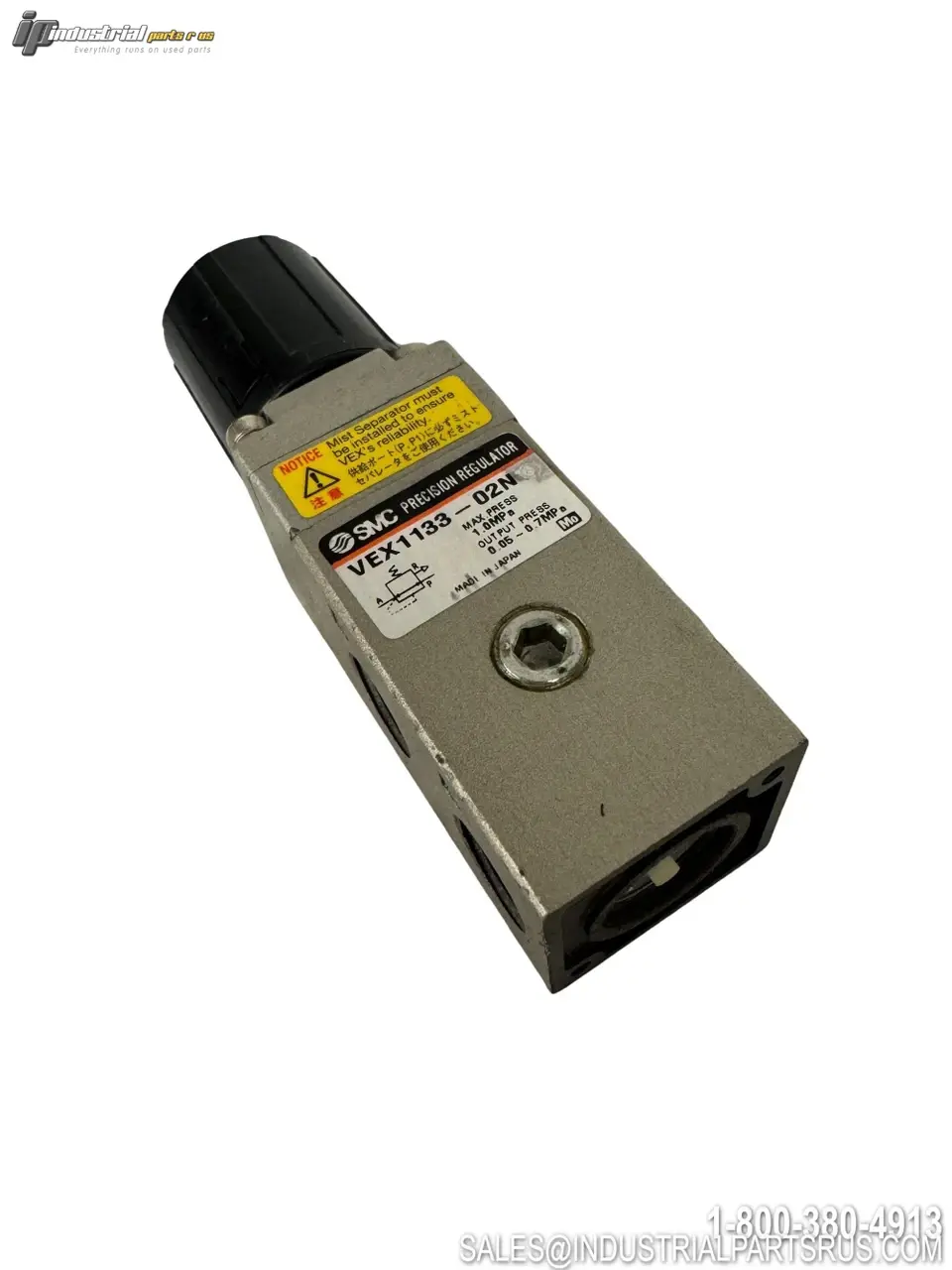

USED SMC VEX1133-02N
Overview
Description
The SMC VEX1133-02N is a precision regulator power valve from the VEX1 30 series designed for pneumatic control applications. This manual handle type valve features large capacity exhaust regulation with high precision control and repeatability, making it ideal for systems requiring accurate pressure regulation.
Specification
Value
Brand
SMC
Model/Part Number
VEX1133-02N
Series
VEX1 30
Type
Precision Regulator Power Valve
Operation
Manual Handle Style
Body Size
Body Ported
Port Size
1/4"
Thread Type
NPT
Maximum Pressure
1.0 MPa
Operating Pressure Range
0.05-0.7 MPa
Setting Sensitivity
0.2% F.S. or less
Repeatability
±0.5% F.S. or less
Sealant Material
Nitrile Rubber
Weight
0.441 lb
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1465
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: VEX1133-02N
Shelf: K-42
Model: VEX1133-02N
MPN: VEX1133-02N
Type: Pneumatic Valve
