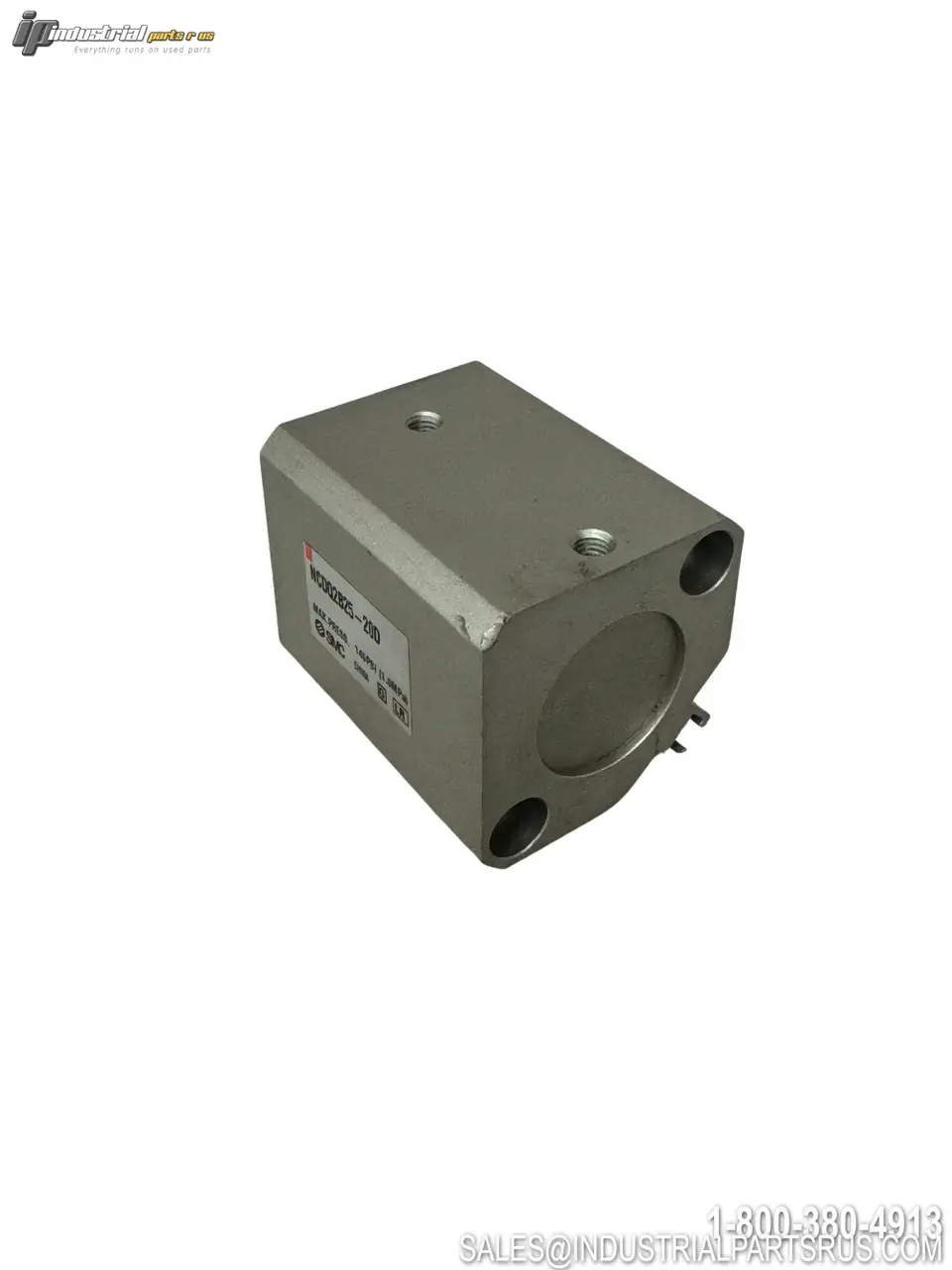

NEW SMC NCDQ2B25-20D
Overview
Description
The SMC NCDQ2B25-20D is a compact pneumatic cylinder from SMC's popular NCQ2 series. This double-acting cylinder features a 25mm bore diameter and 20mm stroke length, designed for North American applications with NPT threads. The cylinder includes built-in magnet capability for auto switch mounting and utilizes through hole mounting configuration.
Specification
Value
Brand
SMC
Model/Part Number
NCDQ2B25-20D
Series
NCQ2
Cylinder Type
Compact Cylinder
Action
Double Acting
Bore Diameter
25mm
Stroke Length
20mm
Mounting Type
Through Hole Mount (B)
Rod Type
Standard Rod
Thread Type
NPT (North American)
Maximum Operating Pressure
1.0 MPa (145 PSI)
Proof Pressure
1.5 MPa (218 PSI)
Operating Temperature Range
-10°C to +60°C
Piston Speed
50-500 mm/s
Magnet
Built-in for Auto Switch
Auto Switch Mounting
4 Surface Mounting Capability
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1456
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: China
Manufacturer: SMC
Part Number: NCDQ2B25-20D
Shelf: K -67
Bore Diameter: 25 mm
Model: NCDQ2B25-20D
MPN: NCDQ2B25-20D
Type: Pneumatic Cylinder
