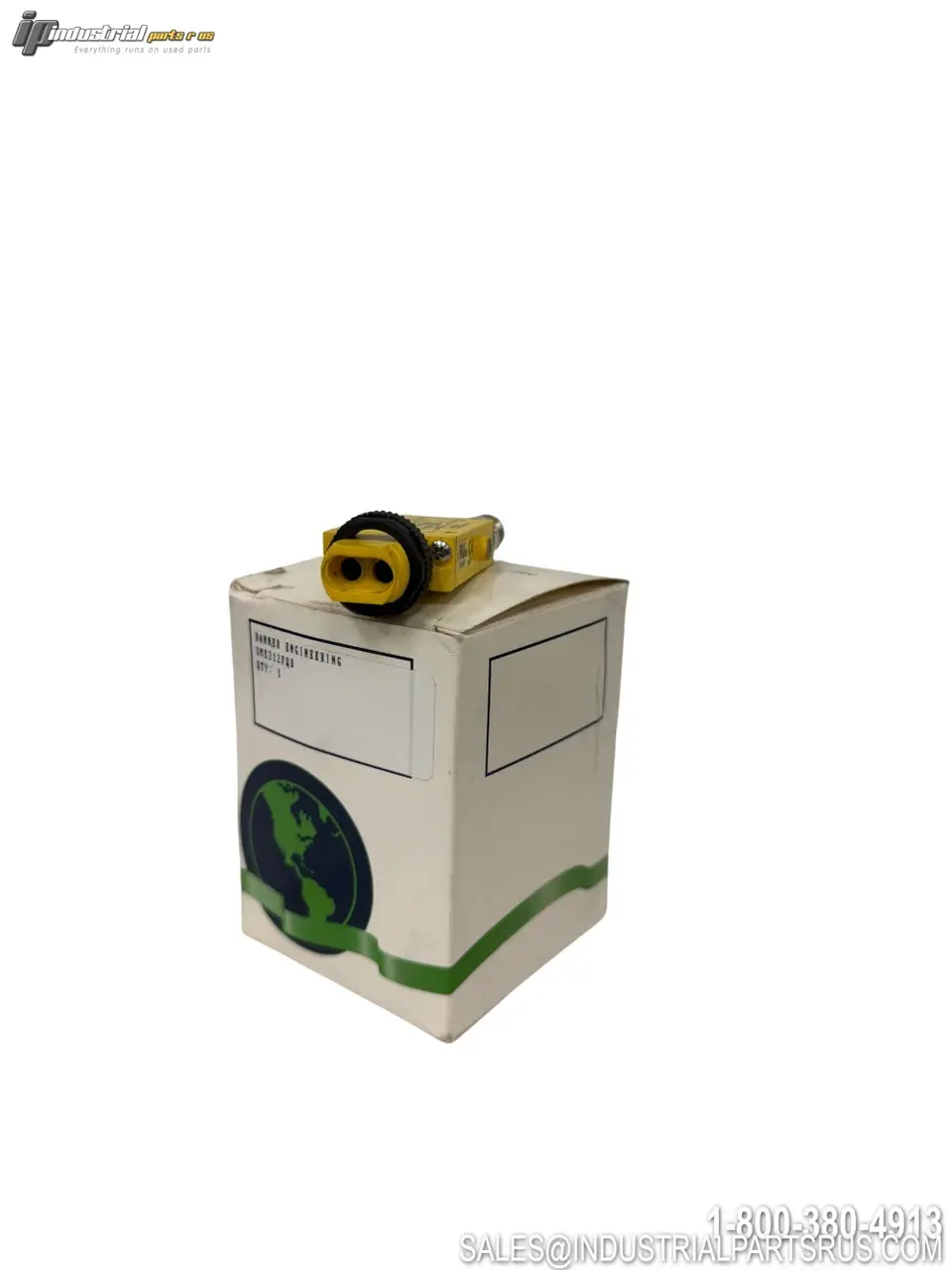

NEW BANNER SME312FQD

The Banner SME312FQD is a MINI-BEAM Expert series fiber optic amplifier designed for industrial sensing applications. This sensor features infrared 880nm glass fiber optic technology with bipolar output configuration providing both NPN and PNP transistor outputs. It operates on 10-30VDC supply voltage and includes a 4-pin M12 integral quick-disconnect connector for easy installation.
Specification
Value
Brand
Banner
Model/Part Number
SME312FQD
Series
MINI-BEAM Expert
Sensor Type
Fiber Optic Amplifier
Light Source
Infrared 880nm
Fiber Type
Glass Fiber Only
Input Voltage
10-30VDC
Output Configuration
Bipolar: 1 NPN, 1 PNP
Output Rating
150mA max at 25°C, derated to 100mA at 70°C
Connection Type
4-pin M12 Integral QD
Response Time
1ms minimum
Repeatability
300µs
Operating Temperature
-20°C to +70°C
IP Rating
IP67
NEMA Rating
NEMA 4X
Housing Material
Thermoplastic
Housing Style
Rectangular w/M18 Mount
Maximum Humidity
90% @ 50°C
Power-up Delay
100ms
Adjustments
Potentiometer
Sensing Range
Depends on Fiber
Banner Part Number
53714
We warranty all items for 30 days from date of purchase.

SKU: AI1404
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: NPN/PNP
Sensor Type: Fiber Optic Amplifier
Manufacturer: Banner
Enclosure Type: NEMA 4X
Part Number: SME312FQD
Shelf: K-45
Model: SME312FQD
MPN: SME312FQD
Type: Fiber Optic Sensor
