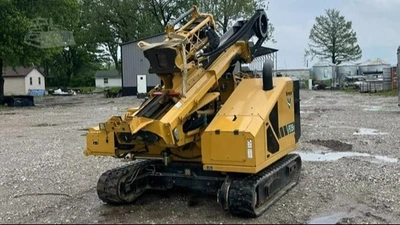

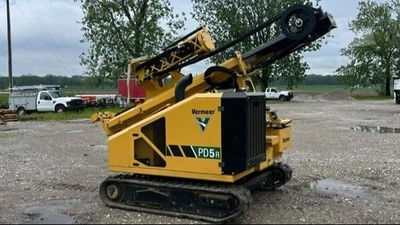

USED 2021 Vermeer PD5R

Operating Weight: 10,330 lbs
Maximum Pile Height: 15.5 ft
Maximum Operating Height: 19.8 ft
Transport Dimensions:
Length: 11.7 ft
Width: 85 in
Height: 8.2 ft
Track Width: 84 in
Engine Options
Option 1 – CAT C2.2T CRDI (Tier 4 Final / EU Stage IIIB):
Gross Horsepower: 48.8 hp
Fuel Type: Ultra-low sulfur diesel
Option 2 – CAT C2.2T (Tier 3 / Stage IIIA CA):
Gross Horsepower: 60 hp
Fuel Type: Diesel
(Both are 4-cylinder, liquid-cooled engines)
Hammer Specifications
Impact Drive Type: High-frequency hammer
Maximum Hammer Impact: 1,500 bpm (blows per minute)
Hammer Energy Class: 1,100
Max Pile Dimensions:
Round: 9.3 in
Square: 8.3 in
Rectangle: 6.7 in x 9.3 in
Maximum Angle Adjustment:
Direction of Tracks: 10° each way from vertical
Perpendicular to Tracks: 10° out from vertical
Ground Drive & Mobility
Track Drive: Rubber tracks
Max Transport Speed: 2.4 mph
Fluid Capacities
Fuel Tank: 25 gal
Hydraulic Tank: 35 gal
Engine Crankcase (with filter): 2.5 gal
Features
Remote Control: Standard
Auto Plumb: Standard
Telematics: Standard
Rotating Platform: Standard
Hammer Pull-Down: Standard
Laser Receiver: Optional

Status: Available
Hours: 1144.6
Weight: 10330.0
Rental Rate: $14000
Rate Schedule: DAY: $1960
Rate Schedule: WEEK: $4043
Rate Schedule: 3 MOS: $42000
Rate Schedule: 6 MOS: $84000
