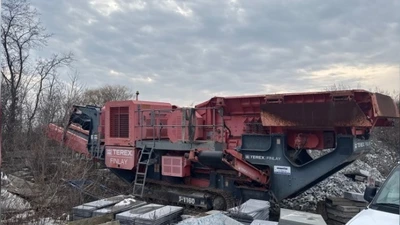

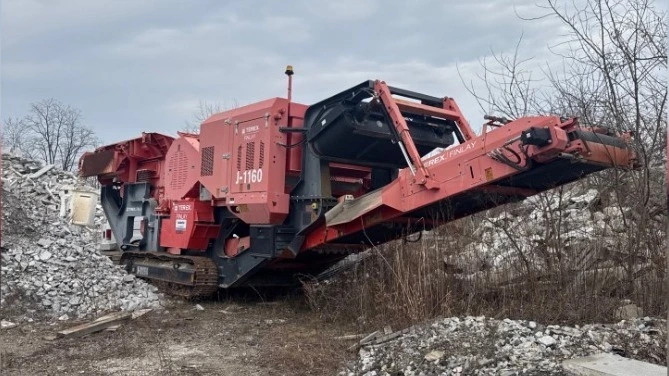

USED 2017 Terex-Finlay J1160

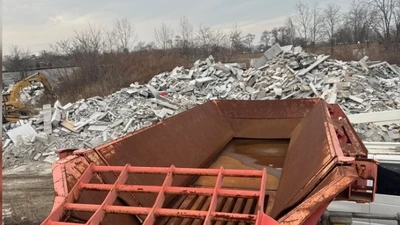

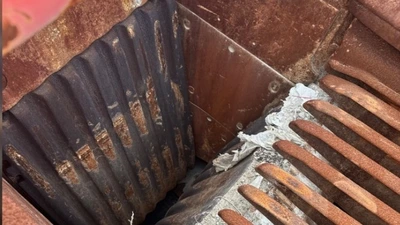

The 2017 Terex Finlay J-1160 Is A Tracked Mobile Jaw Crusher Designed For Quarrying, Mining, Demolition, And Recycling Applications. It Features A Single Toggle Jaw Chamber With A 1000 Mm By 600 Mm (40 By 24 Inch) Inlet And A Maximum Closed Side Setting Of About 145 Mm, With A Minimum Of 40 Mm For Recycling And 50 Mm For Quarry Work. The Machine Is Powered By A Caterpillar Diesel Engine, Typically Delivering Around 205 To 224 Kw (275 To 300 Horsepower), Driving The Crusher Through A Hydrostatic Transmission That Allows Full Reverse Operation To Clear Blockages. The Hopper Has A Standard Capacity Of About 5 Cubic Meters (6.5 Cubic Yards), Which Can Be Increased To 8 Cubic Meters (10.4 Cubic Yards) With Extensions, And Feeds Material Via A Vibrating Grizzly Feeder With Adjustable Speed And Various Aperture Options. Operating Weight With Magnet, Dirt Conveyor, And Hopper Extensions Is Approximately 35,350 Kilograms (77,930 Pounds). Transport Dimensions Are About 15.7 Meters In Length, 2.6 Meters In Width, And 3.4 Meters In Height, While Working Dimensions Extend To 15.5 Meters In Length, 4.6 Meters In Width, And 3.9 Meters In Height. The Main Conveyor Is 900 Mm Wide, With A Discharge Height Of 3.5 Meters And A Stockpile Capacity Of Around 60 Cubic Meters, And There Is An Optional 650 Mm Wide Side Conveyor With Hydraulic Folding And A Discharge Height Of About 2.1 Meters. A Magnet Separator Can Also Be Fitted With A 750 Mm Wide Belt. The Undercarriage Runs On 400 Mm Wide Track Shoes, With Dual-Speed Tracking, Soft Start, And A Maximum Gradeability Of 30 Degrees. Fluid Capacities Include A 640 Liter (169 Gallon) Fuel Tank, A 600 Liter (159 Gallon) Hydraulic Tank, And A 60 Liter (16 Gallon) Def Tank On Emission-Compliant Engines. Overall, The J-1160 Combines Compact Transport Dimensions With Strong Crushing Capacity, Making It Well-Suited For Contractors And Quarry Operators Looking For A Versatile Primary Jaw Crusher.

Status: Available
Hours: 2500
Weight: 77930.0
Rental Rate: $15000
Rate Schedule: DAY: $2100
Rate Schedule: WEEK: $4332
Rate Schedule: 3 MOS: $45000
Rate Schedule: 6 MOS: $90000
