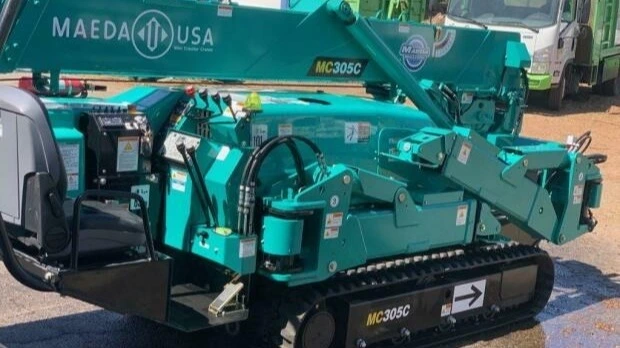

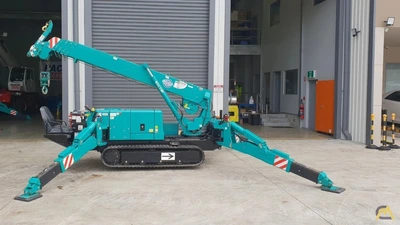

USED 2011 Maeda MC305C-2

Crane Performance
Maximum Lift Capacity: 6,560 Lb At 8 Ft Radius
Maximum Working Radius: 39.8 Ft At 570 Lb
Maximum Lifting Height Above Ground: 41 Ft
Maximum Reach Below Ground (With 4-Fall Rigging): –53 Ft
Dimensions & Weight
Outrigger Maximum Spread (Fully Extended):
Side To Side: 16′12″ (Note: sometimes referenced as 17′0″)
Front: 15′9″
Rear: 15′5″
Overall Dimensions: 13′6″ L × 4′2″ W × 5′7″ H
Machine Weight (Diesel): 8,750 Lb
Machine Weight (With Electric Motor): 9,060 Lb
Mobility
Travel Speed: 0–1.7 Mph
Ground Pressure (Diesel): 8.44 Psi
Ground Pressure (Electric): 8.73 Psi
Powertrain
Engine: Yanmar 3TNV80F-SNMB Diesel
Output: 20.38 Hp At 2,500 Rpm
Electric Motor (Optional): 5.5 Kw, 3-Phase, 230 V
Standard Equipment
Remote Control With Digital Display
Two-Speed Travel And Crane Functions
4-Fall And 2-Fall Hook Blocks
Automatic Hook Stowage System
Level Indicator
Diagnostic Display Panel
Programmable Moment Limiter
Crane/Outrigger Interlock Lamp
Working Status Lamp
Data Logger
Tilt Alarm
Optional Equipment
Electric Motor Inverter System
Single-Fall Hook
Searcher Hooks (850 Kg Or 1.5 T Rated)
Non-Marking White Rubber Tracks
Cold Weather Package
Custom Paint Colors
Machine Cover

Status: Available
Hours: 2885
Weight: 8750.0
Rental Rate: $9930
Rate Schedule: DAY: $1390
Rate Schedule: WEEK: $2868
Rate Schedule: 3 MOS: $29790
Rate Schedule: 6 MOS: $59580
