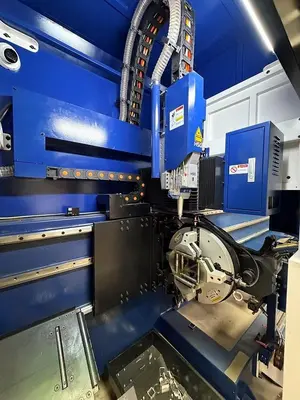

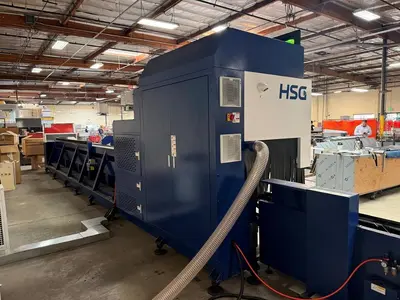

NEW HSG R1
Overview
Specs
Resonator Wattage: 6000 Watts
Tube processing ranges: Round tube: 0.3” – 4.7” Square tube: 0.3”x0.3” – 4.7”x4.7” Rectangular tube: each side 0.3”-4.7” 0.8”x0.8”≤Angle Steel≤3”x3” 2”x1.5”≤ Channel≤3”x43 2”x1.5”≤I beam≤3”x2”

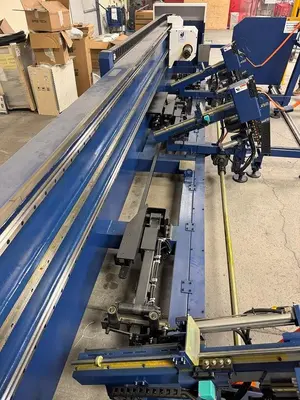

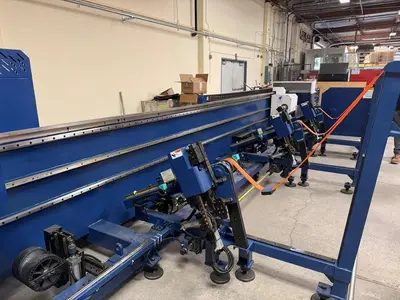

Range of incoming materials for tube: 39”- 255"
Positioning Precision X/Y Axis: ±0.002”/3’
Repetitive Positioning X/Y Axis: ±0.0012

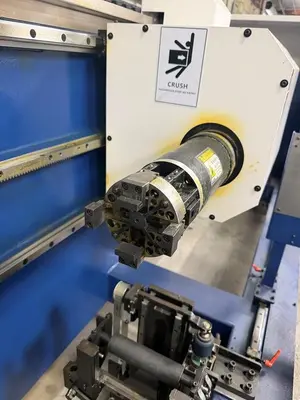

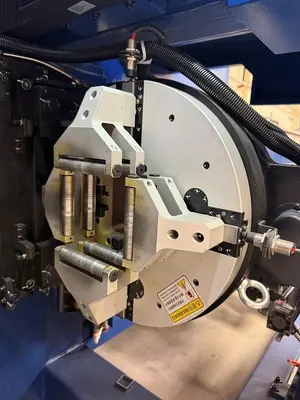

Speed of chuck: 150RPM (When the tube weight increases, the motion parameters would be reduced correspondingly）
Max. linkage speed: 492'/min
Max. linkage acceleration: 1.5G
Maximum single tube weight: Approx. 176 lbs.
Tailing length: ≥2”（for single chuck clamping，manual loading mode，Suggested Tube length≤200mm，Tube weight≤4.4lbs） ≥9”（for double chuck clamping mode）
Electrical: 380V, 50/60 Hz, 3 Phase, 31.88KW / 60.6A (6000W)
Machine Dimensions: 32' x 8' x 8'6"H
Equipped With
Equipped with:

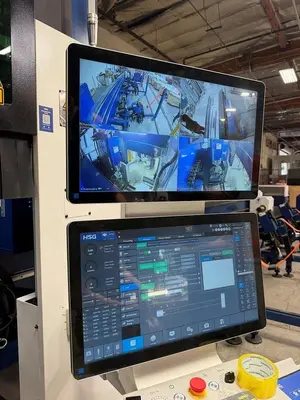

HSG Control

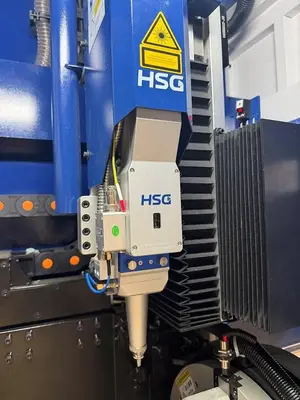

HSG Cutting Head
6kW Raykus Power Source
Chiller
Dust Collector
Safety Protection Package
Transformer
Voltage Stabilizer
Optional Upgrades:
Multi-Tube Automatic Loading System
22TK Air Compressor
Please call for pricing on Upgrades.

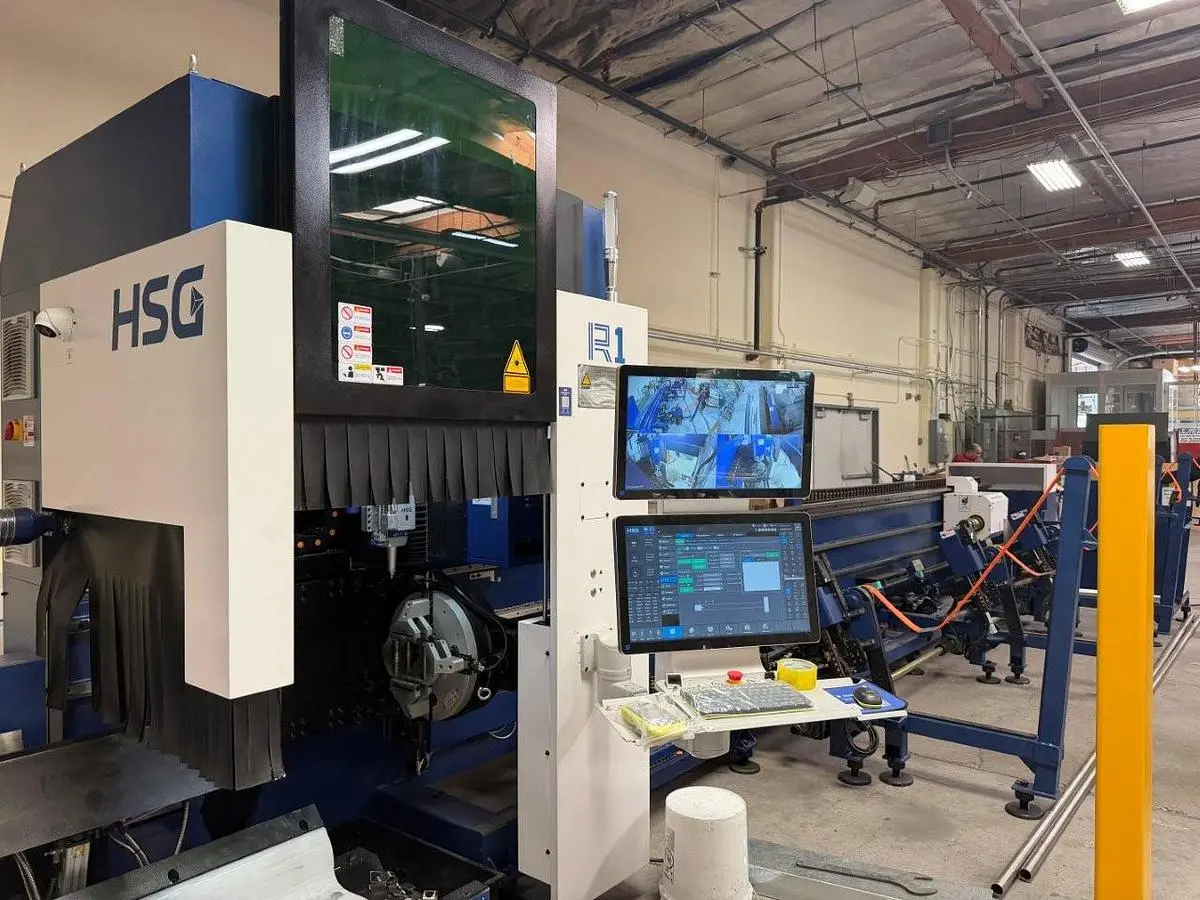

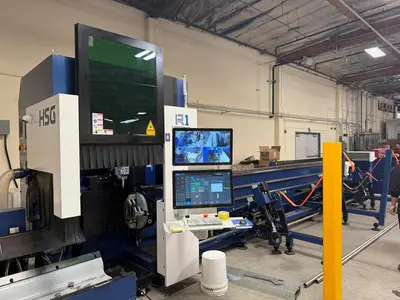

The 6000 Watt HSG R1 CNC Fiber Tube Laser Cutting System offers high precision and efficiency for various tube cutting applications. Boasting a 6000 Watts resonator, it is capable of processing round tubes from 0.3” to 4.7” and square tubes within the same size range. It also accommodates rectangular, angle steel, channel, and I-beam configurations, making it suitable for a wide variety of industrial requirements.
This cutting system provides a substantial material handling capacity, accepting tube lengths between 39” to 255” and a maximum single tube weight of approximately 176 lbs. Its precision is notable, with an X/Y axis positioning precision of ±0.002” per 3’ and repetitive positioning precision of ±0.0012. The machine supports a maximum linkage speed of 492 feet per minute and can achieve a linkage acceleration of 1.5G.
Operating on a 380V, 50/60 Hz, 3 Phase electrical supply, the system requires 31.88KW of power. This system is well-suited for manufacturers looking for speed and precision, as it features a chuck speed of 150RPM, adjusted according to the tube weight. Measuring 32' x 8' x 8'6"H, this sophisticated machine fits well in large-scale industrial settings, fulfilling diverse tube processing needs with accuracy and efficiency.
