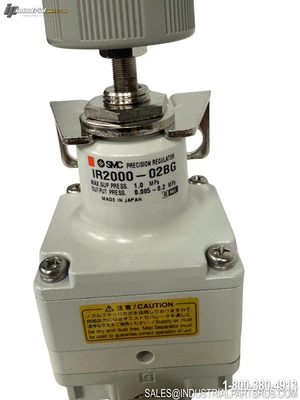

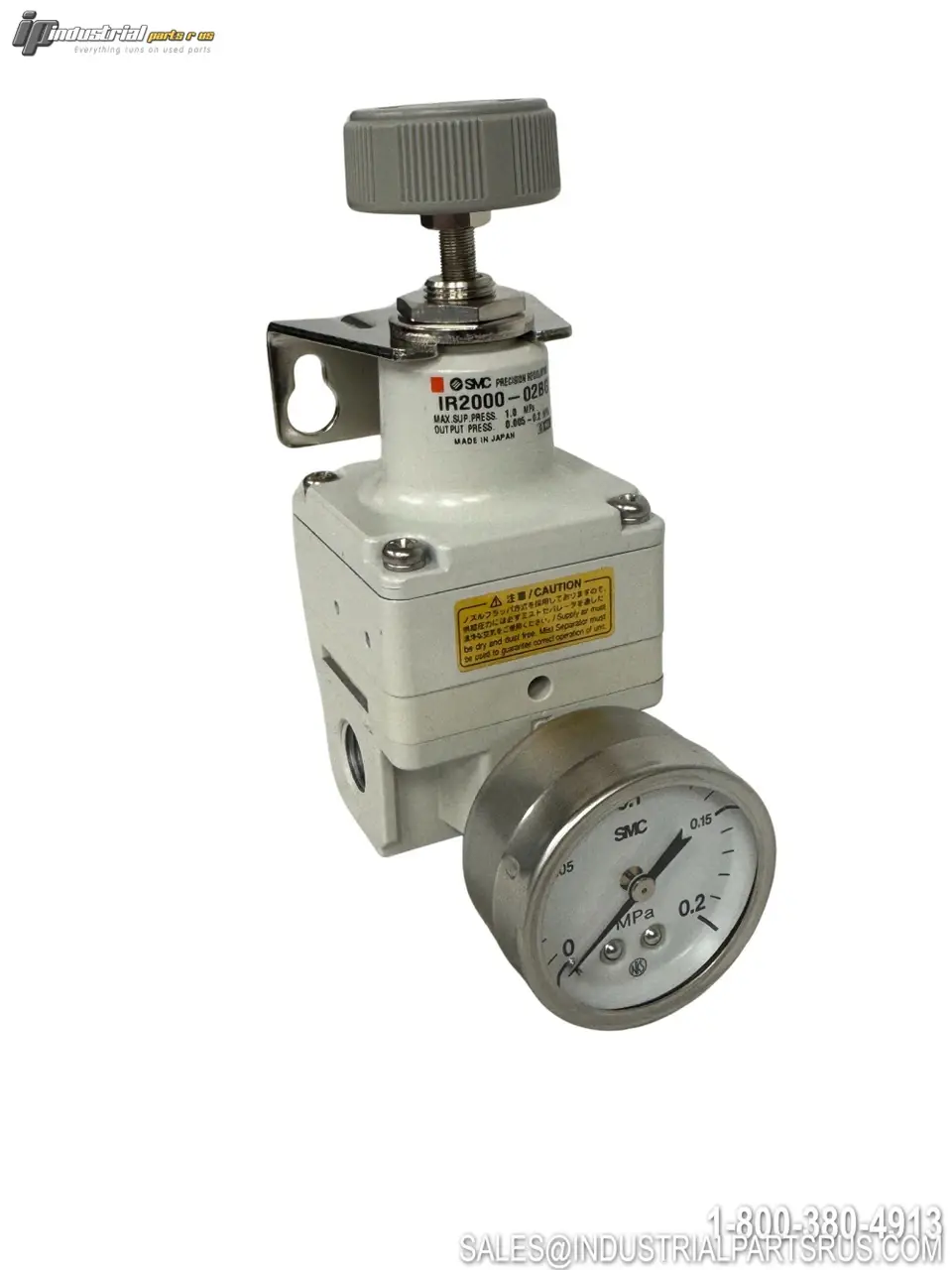

USED SMC IR2000-02BG

The SMC IR2000-02BG is a precision pneumatic regulator from the IR2000 series designed for high-precision pressure control in pneumatic systems. This compact, lightweight regulator features a nozzle and flapper design for superior sensitivity and repeatability, making it ideal for tension control and contact pressure control applications.
Specification
Value
Brand
SMC
Model/Part Number
IR2000-02BG
Product Type
Precision Regulator
Series
IR2000
Body Size
2
Port Size
1/4"
Thread Type
Rc (PT)
Pressure Range
0.005 to 0.2 MPa
Maximum Supply Pressure
1.0 MPa
Flow Rate
4.4 L/min
Sensitivity
0.2% F.S. or less
Repeatability
±0.5% F.S. or less
Setting Type
Basic Type (Handle)
Exhaust Direction
Bottom Exhaust
Accessories Included
Bracket (B) and Pressure Gauge (G)
Operating Fluid
Compressed Air
We warranty all items for 30 days from date of purchase.

SKU: AI1446
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: IR2000-02BG
Shelf: K-4
Model: IR2000-02BG
MPN: IR2000-02BG
Type: Air Regulator
