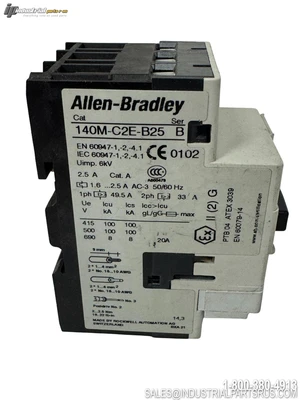

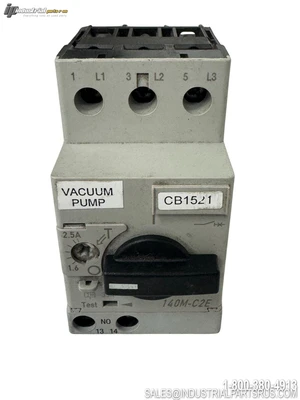

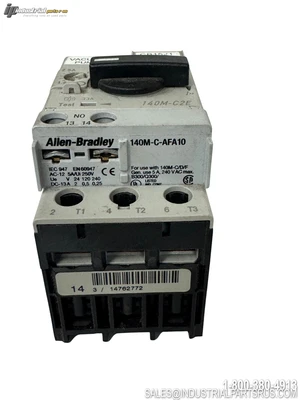

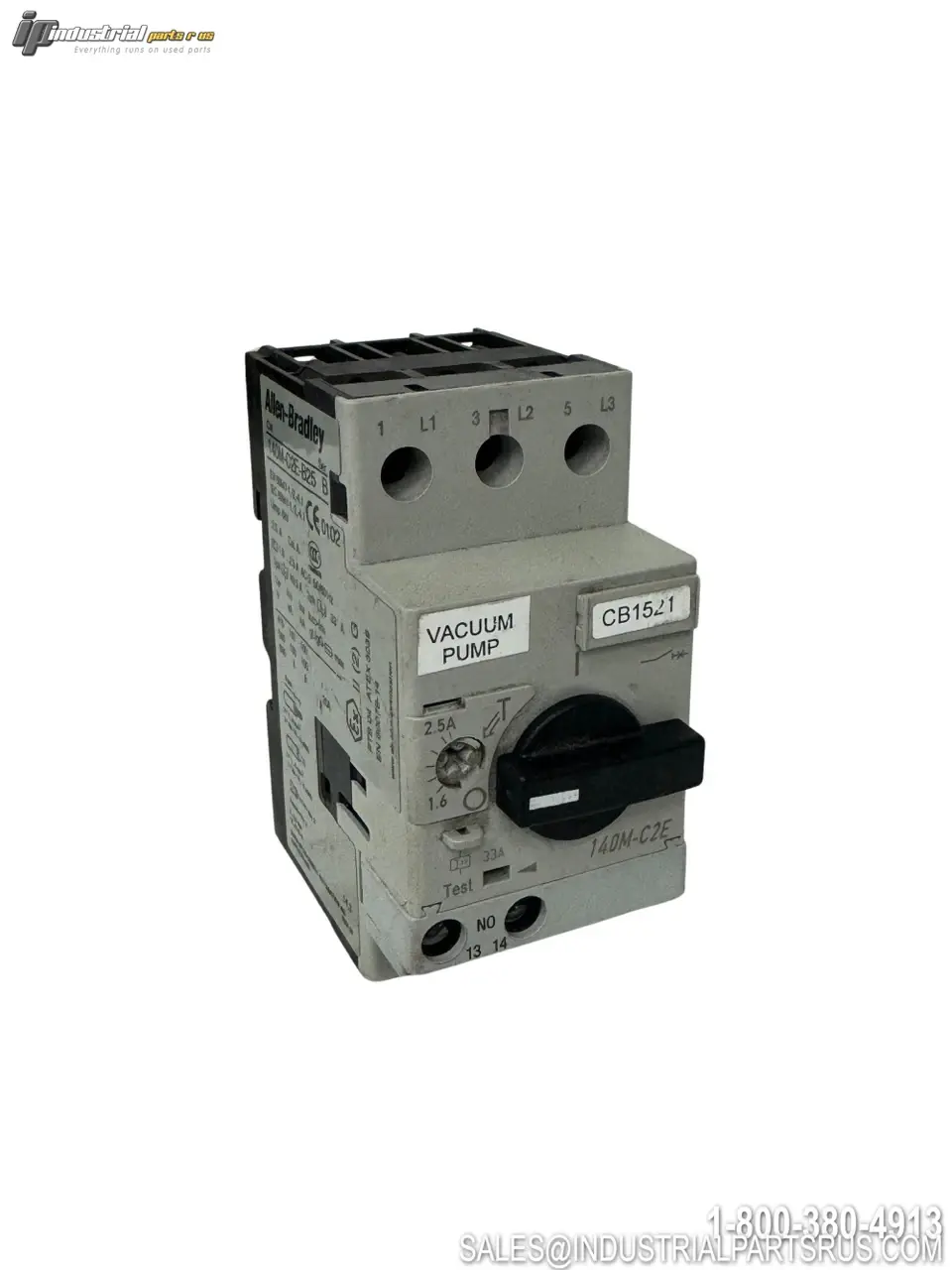

USED ALLEN BRADLEY 140M-C2E-B25 140M-C2E-B25

The Allen-Bradley 140M-C2E-B25 is a 3-phase thermal-magnetic motor protection circuit breaker designed to provide motor overload protection and short-circuit protection. This Frame C device features adjustable bimetal trips for motor overload protection and fixed magnetic trips to de-energize motor circuits in case of short circuits. It is UL/CSA Listed as both a Manual Motor Controller and Manual Self-Protected Combination Motor Controller.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
140M-C2E-B25
Product Type
Motor Protection Circuit Breaker
Frame Size
C
Current Range
1.6-2.5 A
Voltage Rating
480Y/277 VAC 50/60Hz
Maximum Voltage
600 VAC
Phases
3
Breaking Capacity
Standard Breaking Capacity
Maximum Fault Current
5kA
Trip Class
Class 10
Magnetic Trip
Fixed at 13 x Ie
Mounting Type
DIN Rail Mount
Terminal Type
Screw Terminals
Operation
Rotary
UL Listing
UL508
Coordination Type
Type 1
Replacement Product
140MT-C3E-B25
Discontinued Date
February 25, 2022
We warranty all items for 30 days from date of purchase.

SKU: AI1448
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 1.6-2.5 A
Manufacturer: Allen bradley 140m-C2e-B25
Part Number: 140M-C2E-B25
Shelf: K-4
Model: 140M-C2E-B25
MPN: 140M-C2E-B25
Type: Motor Protection Circuit Breaker
