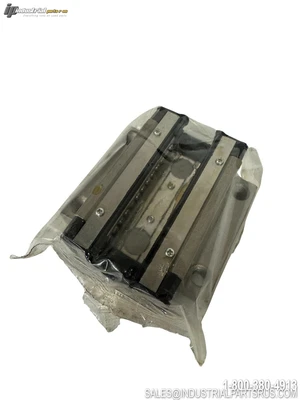

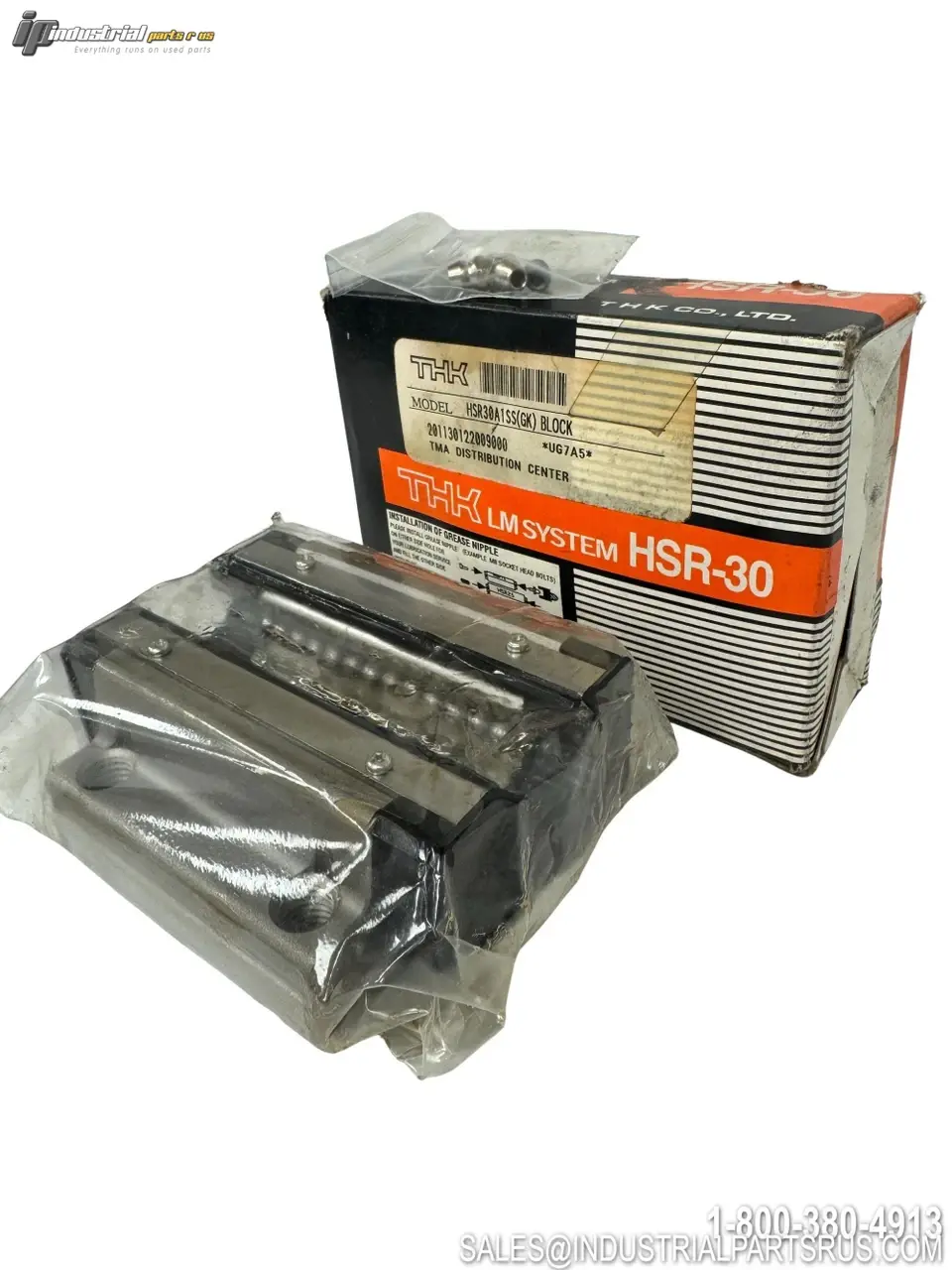

NEW THK HSR30A1SS(GK)

The THK HSR30A1SS(GK) is a standard grade linear guide block from the HSR series featuring a full-ball design with stainless steel end and side seals. This interchangeable linear motion guide block incorporates four rows of precision balls at 45-degree contact angles, providing uniform load distribution in radial, reverse radial, and lateral directions for all-orientation mounting capability.
Specification
Value
Brand
THK
Model/Part Number
HSR30A1SS(GK)
Series
HSR
Type
Linear Guide Block
Length
98mm
Width
90mm
Height
35mm
Rail Size
30mm
Dynamic Load Rating
28 kN
Static Load Rating
46.8 kN
Transverse Hole Spacing
52mm
Lateral Hole Spacing
72mm
Mounting Holes
M10
Ball Contact Angle
45 degrees
Seal Type
SS - Stainless Steel End + Side Seals
Grade
Standard Grade
Weight
2.0 lbs (0.91 kg)
Block Configuration
4-Way Standard
Interchangeable
Yes
We warranty all items for 30 days from date of purchase.

SKU: AI1444
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: THK
Part Number: HSR30A1SS(GK)
Shelf: GS 7 Tub 9
Model: HSR30A1SS(GK)
MPN: HSR30A1SS(GK)
Type: Linear Guide
