USED SHANKLIN F-5A

904779

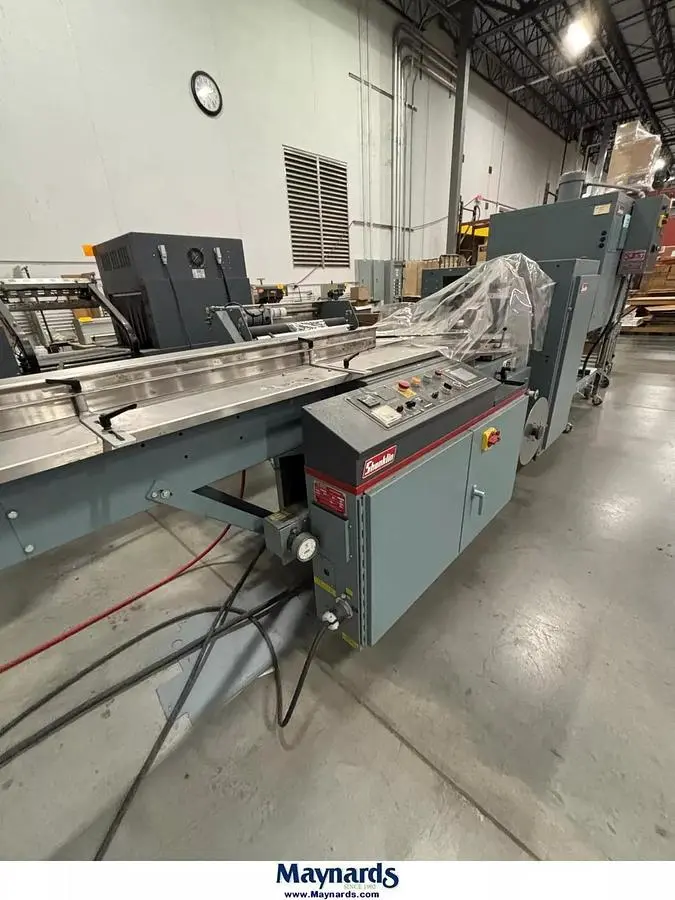

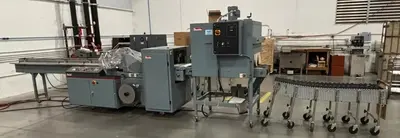

Used Shanklin Mdl. F-5A Automatic side seal shrink
wrapper system.
With 6'long flighted infeed conveyor and a Shanklin
Mdl. T-7XL 18" wide hot shrink tunnel, inverting head, salvage winder,
end seal, film perf. on casters and a 6' long accordion roller
conveyor.
PKG. SIZE RANGE: 3” TO 48” L
½” TO 16” W
1/8” TO 6” H
MAX. FILM SIZE: 22” CF
PRODUCTION SPEEDS: UP TO 75/PPM
POWER: 208V; 1 PH; 20 AMP
AIR REQUIRED: 60 TO 85 PSI
FOOT PRINT: APPROX. 12.5’ L x 4’ W x 72” H
WEIGHT: APPROX. 2300 LBS.
SERIAL # F-053

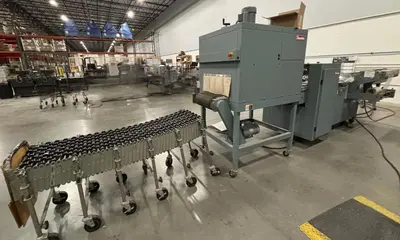

SHANKLIN T-7XL SHRINK TUNNEL
W/ SS MESH BELT CONVEYOR; VARIABLE DIGITAL
TEMPERATURE CONTROL; VARIABLE BELT SPEED
TUNNEL PASSAGE: 42”L x 22’ W x 8” H
FLOOR SPACE: 5’L x 3’ W
POWER: 240 V; 3 PH
WEIGHT: 1,000 LBS.
SERIAL # T-04241
