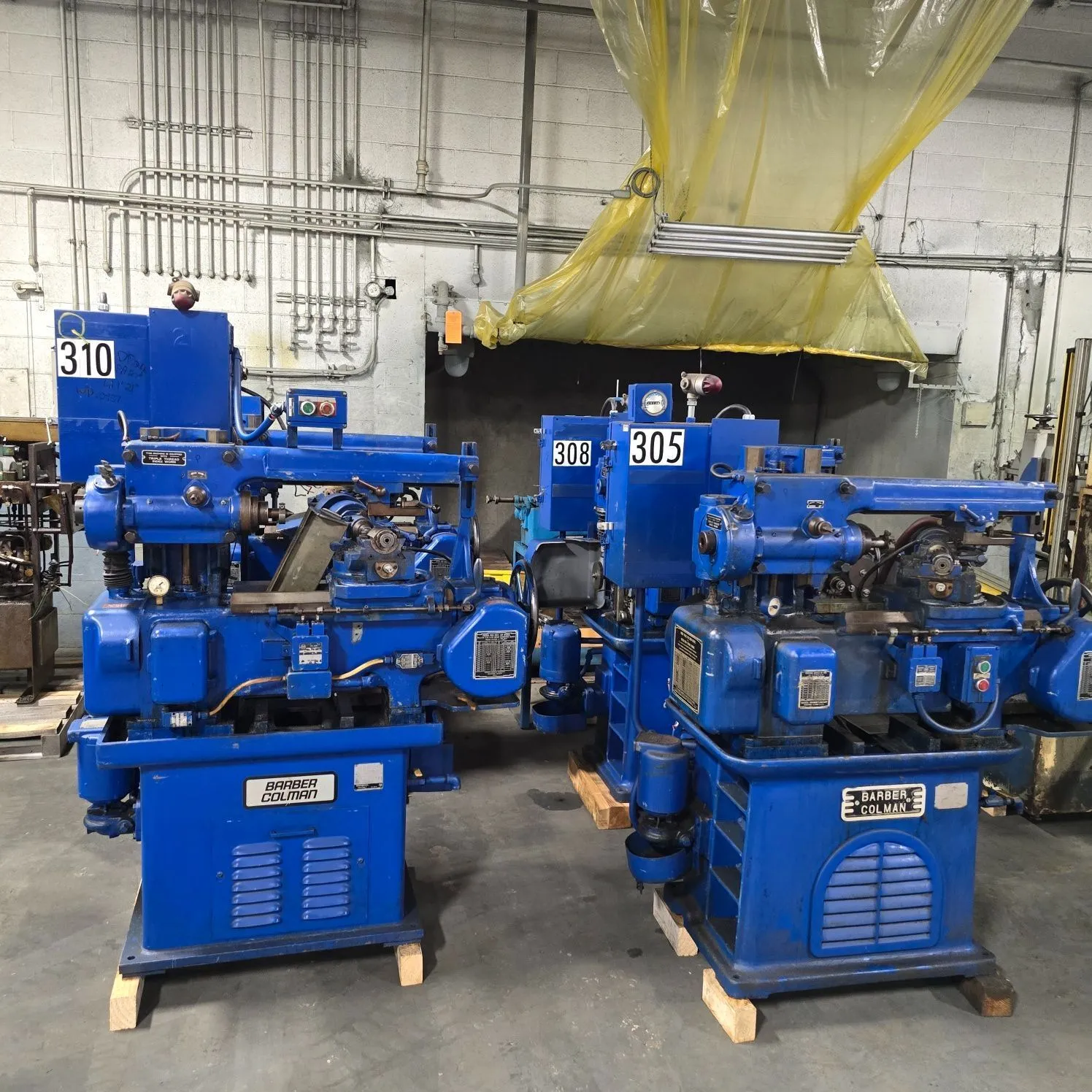

USED BARBER COLMAN 6-10

barber-Colman model 6-10 , 6" diam x 10" cut length , c-frame , v-ways triple thread worms , nice package !!

Barber - Colman Horizontal Gear Hobbing Machines
Model 6-10 s/n will advise
4- available

These Barber-colman machine possesses almost all the finer options and later
style design the OEM had to offer at the time of its manufacturing.
The C-Frame style machine and V-way construction should give you a quality
spline or gear thru-out its entire service life.

Machine Specifications are as follows:
MAXIMUM WORK DIAMETER: 6"
MAXIMUM TRAVEL OF HOB CARRIAGE: 10-1/2"
MAXIMUM DIST. SPINDLE FACE TO TAILSTOCK CENTER: 15-3/4"
MAXIMUM DIAMETRAL PITCH, 1 CUT: 16 DP - 2" DIAM
MAXIMUM DIAMETRAL PITCH,1 CUT: 48 DP - 6" DIAM
MAXIMUM HOB DIAMETER: 2-1/16"
HOB SPEED: 133 - 533 RPM
WORK SPINDLE BORE: 1-1/32"
WEIGHT OF MACHINE: 2,700 LBS.

MACHINE IS EQUIPPED WITH:
Triple Thread Standard Worm
Bayonet Center
Manual hob shift
Standard hob head
Change Gears
1 Hob Arbor
220/440 power

Machines can be inspected under power in good mechanical condition at our
Statesville, NC. shop. call for detailed information
Contact us for any further information you require.
