31,000 Gallon Jacketed Brewery Storage Tank Rolec 118,745 Liter

Used Rolec 31,372 Gallon, (118,745 liter) Jacketed 304 Stainless Steel Storage Tank. Approximately 3,900mm (153.54") inner diameter x 8,500mm (334") straight side, dish top, 55 degree cone bottom, approximately 2,400mm (94.48") deep, rated 0.9 bar at 40C internal, jacketed cone and 196" of straight side in (4) zones rated 3 bar at 40C, on (4) stainless steel legs with approximately 40" discharge height, approximately 4,100mm (161.41") outside diameter approximately 534" overall height, with 164.5" overall width and height prone position shipping dimension, serial# 14063-8, built 2016. Last used at a brewery.

Used Equipment Facts About This Machine
Manufacturer Info
Rolec is a European manufacturer known for high-quality stainless steel tanks and process vessels used in brewing, food processing, pharmaceutical, and chemical industries. Their tanks are engineered for hygienic storage, fermentation, and processing with precision fabrication and pressure-rated designs.
Description
Used Rolec 31,372 gallon (118,745 liter) jacketed storage tank constructed of 304 stainless steel. Designed with a dish top and 55° cone bottom for efficient drainage, this tank includes multi-zone jacketing on the cone and straight side for temperature control. Rated for internal pressure and jacket service, it is ideal for brewing, food, and industrial liquid storage applications. Previously used in a brewery, this vessel is mounted on stainless steel legs with elevated discharge height for easy process integration.
Specifications

Manufacturer: Rolec
Capacity: 31,372 gallons (118,745 liters)
Material: 304 Stainless Steel

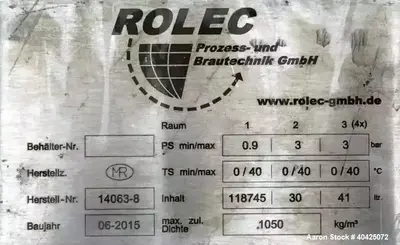

Serial Number: 14063-8
Year Built: 2016
Condition: Used
Previous Use: Brewery

Dimensions:

Inner Diameter: ~3,900 mm (153.54")
Straight Side Height: ~8,500 mm (334")
Cone Depth: ~2,400 mm (94.48")
Outside Diameter: ~4,100 mm (161.41")
Overall Height: ~534"
Shipping Dimensions (prone): ~164.5" W x 164.5" H

Design Features:

Top: Dished top
Bottom: 55° cone bottom
Jacket:

Cone jacketed
Straight side jacketed (~196") in (4) zones

Internal Rating: 0.9 bar @ 40°C
Jacket Rating: 3 bar @ 40°C
Supports: (4) stainless steel legs
Discharge Height: ~40"

Applications

Brewery storage and fermentation
Liquid storage and holding
Food and beverage processing
Chemical storage tanks
Pharmaceutical liquid storage
Temperature-controlled storage
Bulk liquid processing
Industrial mixing and holding

Products This Would Be Used For

Beer and fermented beverages
Water and process liquids
Dairy products
Liquid food ingredients
Chemicals and solutions
Alcohol and spirits
Syrups and concentrates
Nutraceutical liquids
Cleaning solutions
Bulk liquid intermediates
