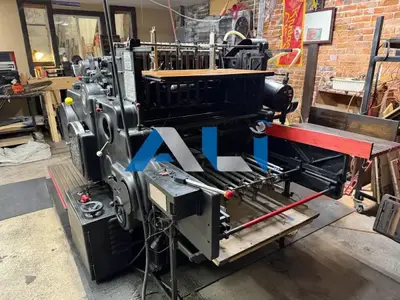

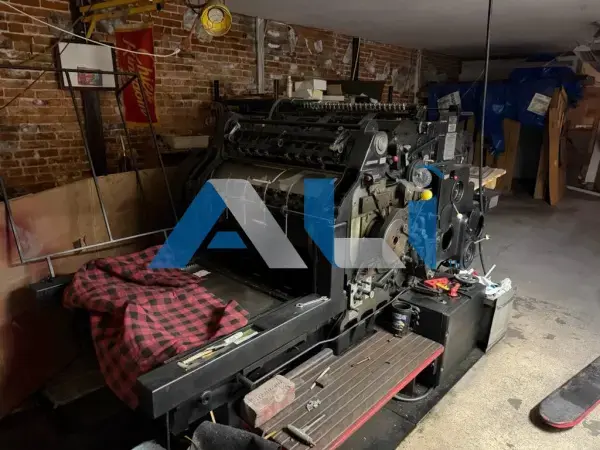

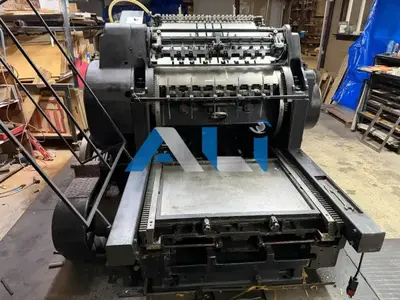

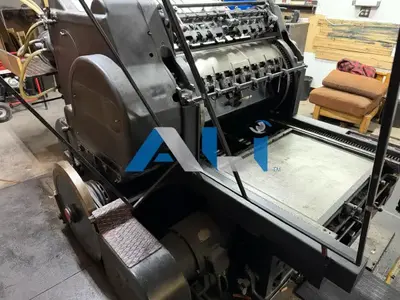

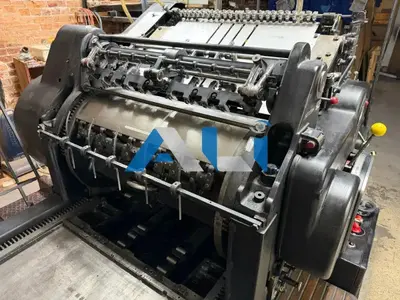

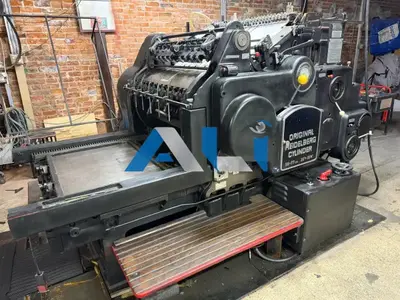

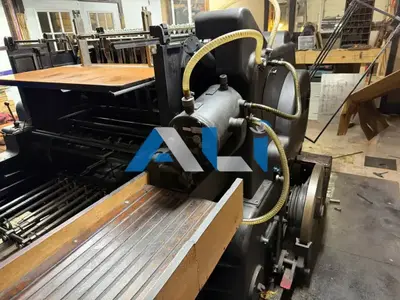

#106329 Heidelberg 22x30.5 Cylinder Die Cutter

Heidleberg 22x30.5 Cylinder Die Cutter

ALI# 106329

The Heidelberg Cylinder Die Cutter 22" x 30.5" is a heavy-duty industrial machine used for die-cutting, creasing, perforating, and embossing paperboard and printed materials in packaging, commercial printing, and specialty finishing.

Key Specifications

Model: Heidelberg SBG / S Series Cylinder Die Cutter
Max Sheet Size: 22.5" x 30.25" (570 x 820 mm)
Min Sheet Size: ~11.75" x 15.75" (298 x 400 mm)
Standard Chase Size: 22 1/16" x 28 3/8" (562 x 724 mm)
Skeleton Chase Size: 22 1/16" x 27 3/16" (562 x 690 mm)
Max Form Between Bearers: 20 1/4" x 27 3/16" (514 x 690 mm)
Max Form in Std Chase: 20 1/4" x 26 3/8" (514 x 675 mm)
Gripper Margin: 5/16" x 3/8" (10 x 9.5 mm)
Max Speed: Up to 4,600 sheets/hour
Punching Pressure: ~60 tons
Net Weight: ~11,700 lbs (5,300 kg)
Gross Weight: ~13,500 lbs (6,100 kg)
Electrical Requirements: 240V, 40A, 3-phase
Construction: Heavy-duty frame, precision gripper system, automatic feeder/delivery

Although we strive for accuracy, some equipment

and specifications are difficult to confirm. Descriptions and specifications of the equipment are not warranties and are intended only as a courtesy. Buyer inspection is encouraged and we recommend to cross-check with the manufacturer for any difference between the machine being sold and what is stated in the listing. There are no warranties or guarantees implied unless otherwise stated. All items are sold "As Is, Where Is, and With All Faults." No guarantee is made as to fitness for a particular purpose, implied or otherwise.
