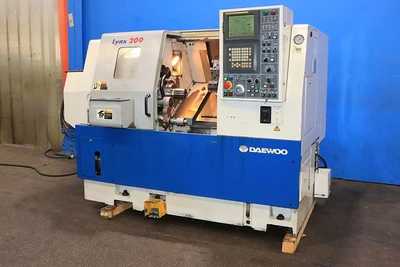

USED 2000 Daewoo Lynx 200LC

18.11" Swing 19.68" Centers Daewoo Lynx 200LC CNC LATHE, Fanuc 21i-T, Collet Chuck, Tailstck

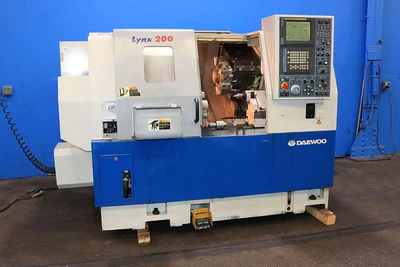

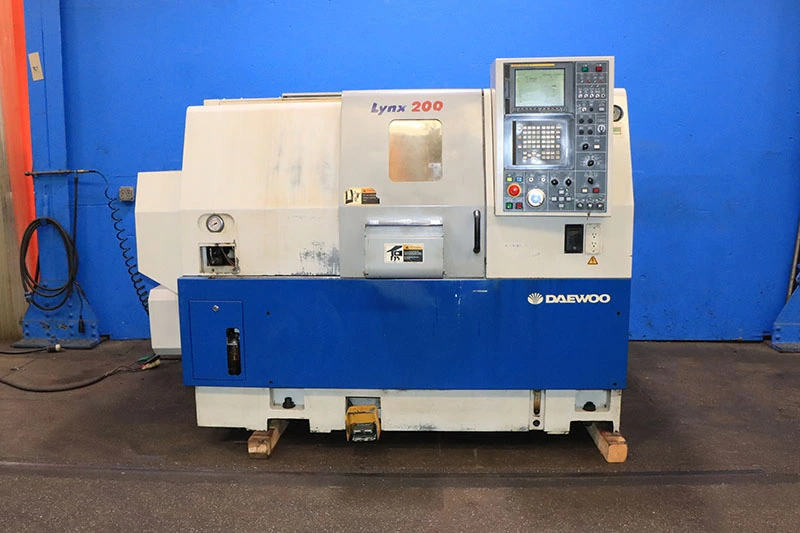

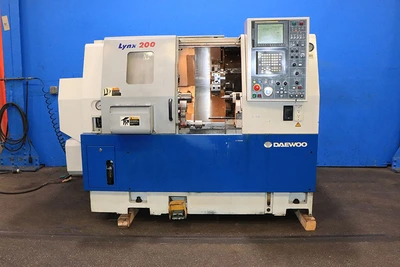

Daewoo Lynx 200LC CNC Turning Center

New: 2000

Video Link: https://youtu.be/iMTAXBKxI2I?si=0anu3WHr3pbjhzfZ

Specifications:

Swing Over Bed: .................. 18.11"

Swing Over Saddle: ............... 13.78"

Recommended Machining Daimeter: .. 6.5"

Maximum Machining Diameter: ...... 11.02"

Maximum Work Length: ............. 19.68"

Draw Tube Diameter: .............. 2.59"

X-Axis Travel: ................... 6.3"

Z-Axis Travel: ................... 20.86"

Spindle Chuck Diameter: .......... 8"

Spindle Speed Range: ............. 40 - 4500 RPM

Spindle Nose: .................... A2-6

Spindle Bore Diameter: ........... 2.99"

Number of Turret Stations: ....... 12

OD Tool Height ................... 1"

Boring Bar Dia. .................. 1.5"

Tailstock Quill Diameter: ........ 2.56"

Tailstock Quill Travel: .......... 3.15"

Tailstock Quill Taper ............ MT#4

Spindle Drive (Cont/30 Min): ..... 9/11 kW

Approx. Weight ................... 7,000 Lbs.

Equipped with:

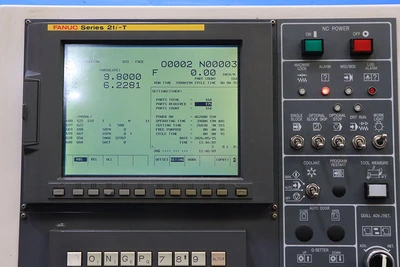

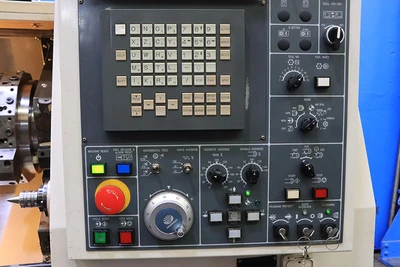

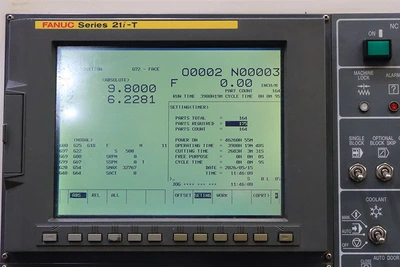

Fanuc 21i-T CNC Control

Toolsetter

Collet Chuck

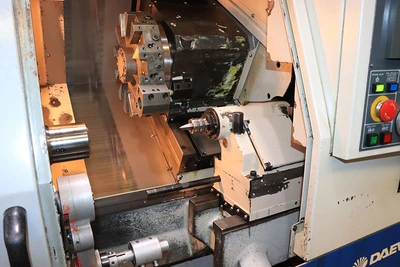

12 Position Turret

Tailstock

All Available Toolholders

All Available Manuals

FOR MORE INFORMATION: Call Mike at 973-497-7540
