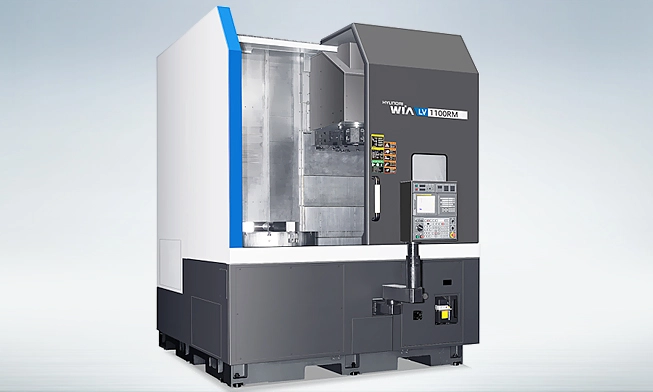

NEW HYUNDAI WIA LV1100R

OverviewThe LV1100R/L (M) is designed for high speed, heavy cutting and long-term high accuracy and superior surface finishes. HYUNDAI WIA's advanced technological features to provide exceptional value. The thermo-friendly design enables the ability to hold tight tolerances and eliminates the need for separate finishing or grinding operations. Use of Fanuc Control creates optimal operating efficiency.

Fanuc 32i-B Control
Ø45.7" (Ø 1,160mm) Max. turning diameter
39.4" (1,000mm) turning length
Powerful 87.2Hp (65kW) spindle motor (10min)
High Torque 5,657.8 lbs.ft (7,671 N.m) (10min)
40" chuck / 630 RPM Spindle
Ø15" (Ø380mm) Flat spindle nose
Gear box attached spindle motor + belt
Live Tool: 3,000 rpm [LV1100RM/LM]
15 HP / 51.6 lbf.ft torque
Travel (X/Z): 24.4"/39.4" (620mm/1,000mm)
Box guideways
Rapid speed: 945 IPM (24m/min) X and Z
Manual Tool setter
Tool size: 1.3"/Ø 3.1" (32mm/Ø80mm)
Servo Turret
87 PSI coolant system (290 PSI-opt)
Bed Flushing
Double Pre-Tensioned Ball screws
Rigid tapping
Chip Conveyor (49" discharge height)
Separate coolant tank
3 color tower signal light
Full enclosure splash guard

Max Turn Dia: 45.7 in.
Max Turn Len: 39.4 in.
Chuck Size: 40 in.
Spindle RPM: 630
Spindle HP: 87.2
Spindle Torque: 5657.8
Rapids(X): 945
Rapids(Z): 945
Travel(X): 24.4
Travel(Z): 39.4
No of Tools: 12
