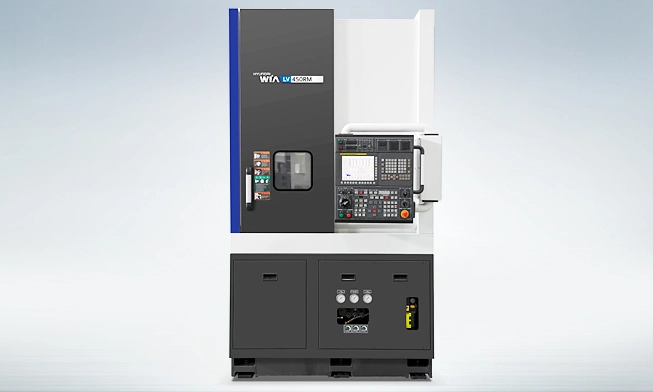

NEW HYUNDAI WIA LV450RM

OverviewThe HYUNDAI WIA LV450R/L series of Vertical Turning Center features a box type column. This single piece, square type column offers the ultimate stability by absorbing vibration and eliminating twist. This combination delivers superior precision even during heavy cutting. Also available in a milling configuration having live tooling and C axis: Live Tooling (M)

Fanuc 32i-B Control
Ø18.3" (465mm) Max. turning diameter
18.3" (465mm) turning length
Powerful 30 HP (22 kW) spindle motor
High Torque 538.4 lbs./ft. (730 N.m)
12" chuck
3,000 RPM Spindle
A2-8 Spindle nose
Live Tool: 4,000 rpm [LV450RM/LM]
7.4 HP / 25.8 ibf.ft torque
Travel (X/Z): 12.2"/19.5" (310mm/495mm)
Rapid speed: 787 IPM (20m/min) X, and 945IPM (24m/min)
Roller guideways
Manual Tool setter
Tool size: 1"/Ø 2" (25mm/Ø50mm)
Servo Turret
290 PSI coolant system
Spindle override 50% to 150%

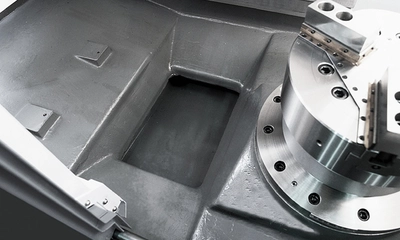

Massive Meehanite cast iron bed
Bed Flushing
Jet Coolant (Shower Coolant)_opt
Rear Hinged Chip Conveyor (42" discharge height)
3 color tower signal light
Full enclosure splash guard

Max Turn Dia: 18.3 in.
Max Turn Len: 18.3 in.
Chuck Size: 12 in.
Spindle RPM: 3,000
Spindle HP: 30
Spindle Torque: 538.4
Rapids(X): 787
Rapids(Z): 945
Travel(X): 12.2
Travel(Z): 19.5
No of Tools: 12
