NEW KITAMURA MYTRUNNION-7G

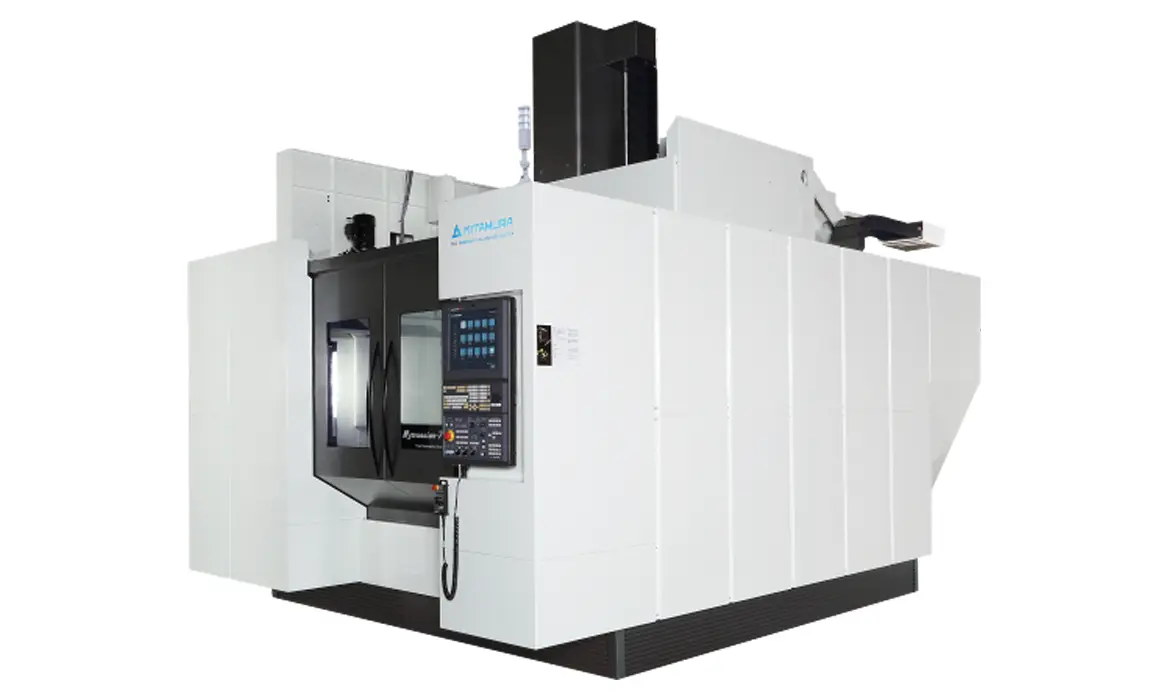

OverviewThe box-way, Mytrunnion-7G 5-axis simultaneous vertical machining center delivers the rigidity and ultra-high precision needed for fast, accurate machining of complex, tight-tolerance geometries

Table Size: Ø39.7"
Travel (X, Y, Z): 46.9" x 54.3" x 30.1"
Travel (A, C): 150deg (-120 to +30deg), 0 to 360deg
Spindle Taper: NST No. 50 (HSK-A100 Opt.)
Spindle Speed: 35-12,000 min-1, 4-Step Gear Driven
Tool Storage Capacity: 100 Pcs.
Rapid Feed (X,Y x Z): 50m/min (1,969ipm) x 30m/min (1,181ipm)
Rapid Feed (A, C): 25 min-1 (9,000 deg/min), 27.5 min-1 (9,900 deg/min)
Power Requirement: 65KVA, 200v AC, 3 Phase
Dual Contact Spindle System
Spindle Orientation
Spindle Taper Air Blow
Spindle Bearing Lubrication System
Spindle Oil Cooler
Ballscrew Cooling System
Intelligent Advanced Control System (IAC)
100 Tool Automatic Tool Changer
Prep for Coolant Thru the Spindle
Memory Random Tool Call-Up Function
Coolant Pump (1.2kw/1.6hp, 150L/min, 39 GPM)
Coolant Tank 625L (164.9 Gallon)
Double Decker Chip Conveyor and Filtration System
Heidenhain Linear Scale Feedback on All Axes, Rotary Scales (A & C)
Advanced 5-Axis NC Simulation & Verification Solutions
Wash Coolant (Base Wash Only)
Fully Enclosed Splash Guard
Automatic Way Lubrication
Auto Power Off
Door Interlock
Air FRL Unit (Filter, Regulator, Lubricator)
Hydraulic Pump and Tank
Work Light
3-Step Cycle Finish Lamp
Tool Monitor/Adaptive Control
Anywhere-Remote (E-Mail Status Updates)
Renishaw Set and Inspect Software
Rigid Tap (Synchronous Feed Tap)
User's M-Function (Total 8 Sets, M20-M27)
Machine Installation Tool Kit
Leveling Bolts and Plates
Machine Spare Parts
CNC Spare Parts

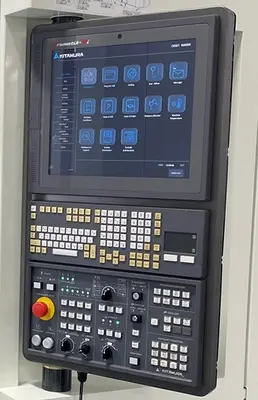

Swivel Main Operation Panel
Manual Remote Pulse Generator
Large 19" Color LCD
Manual Pulse Generator, Separate
Input / Output Interface (USB Memory I/F on Operation Panel)
Power Indicator LED
Alarm Indicator LED
Program Protect Key Switch
Data Protect Key Switch
Push Button Switch/Emergency Stop

Table Size: 39.7 in.
Magazine: 100
Spindle RPM: 12,000
Spindle Taper: NST 50
Spindle HP: 54
Rapids(X): 1969
Rapids(Y): 1969
Rapids(Z): 1181
Travel(X): 46.9
Travel(Y): 54.3
Travel(Z): 30.1
