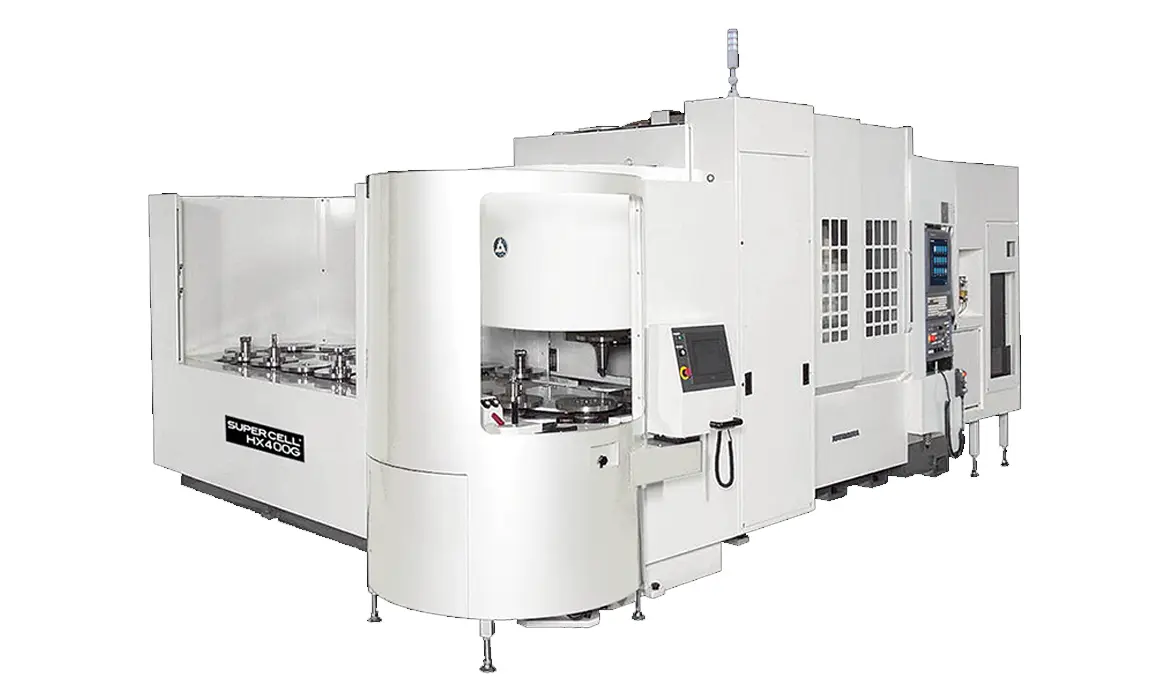

NEW KITAMURA SUPERCELL-400G

OverviewThe Supercell-400G 5-axis Horizontal Manufacturing Cell features multi-pallet and multi-tool configurations for high-mix or repeat parts, running largely unattended for maximum machine utilization.

Pallet Size: Ø13.8"
Travel (X, Y, Z): 20.1" x 20.1" x 20.1"
Travel (A, B): 150deg (-120 to +30deg), 0 to 360deg
Spindle Taper: NST No. 40
Spindle Speed: 20,000
Tool Storage Capacity: 190 - 290 Tools Optional
Rapid Feed (X,Y,Z): 1,969 ipm
Rapid Feed (A, B): 2,400 deg/min, 33.3 min-1 12,000 deg/min
Power Requirement: 45KVA, 200v AC, 3 Phase
High Speed Spindle, 20,000 RPM (4-Step Gear Driven)
Dual Contact Spindle System
Spindle Orientation, Spindle Taper Air Blow
Spindle Bearing Lubrication System
Spindle Oil Cooler
20-Station Automatic Pallet Changer
Work ID System
Automatic Work Handling Robot
Linear Scale Feedback in All Axes
Full 4th Axis/5th Axis Trunnion Table
15 Bar (220psi) Coolant Thru the Spindle
Intelligent Advanced Control System (IAC)
190 Tool Automatic Tool Changer (Side Mount Magazine)
Fixed Pot Method
Kitamura Original Stand-by ATC Function
Bi-Directional Random Tool Call-Up Function
Automatic Pallet Recognition
Cutting Fluid Device
Coolant Pump (1.2kw/1.6hp, 150L/min (39 GPM))
Coolant Tank (400L/105.5 Gallons)
Double Decker Conveyor and Filtration System
Internal Chip Augers
Shower Coolant (Overhead Only)
Wash Coolant (Base Wash Only)
Fully Enclosed Splash Guard
Advanced 5-Axis NC Simulation and Verification Solutions (1-Year Subscription)
Automatic Way Lubrication
Door Interlock
Auto Power Off
Air FRL Unit (Filter, Regulator, Lubricator)
Hydraulic Pump and Tank
Work Light, 3-Step Cycle Finish Lamp
Tool Monitor/Adaptive Control
Anywhere-Remote (E-Mail Status Updates)
Renishaw Set and Inspect Software
Rigid Tap (Synchronous Feed Tap)
User's M-Function (Total 8 Sets, M20-M27)
Machine Installation Tool Kit
Leveling Bolts and Plates
Machine Spare Parts
CNC Spare Parts

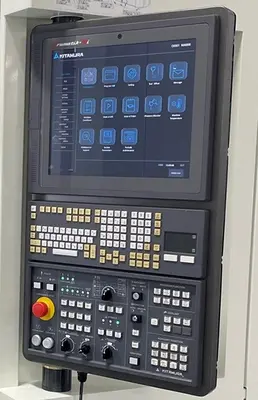

Swivel Main Operation Panel Manual Pulse Generator, Separate

Table Size: 13.8 in.
Magazine: 190
Spindle RPM: 20,000
Spindle Taper: NST 40
Spindle HP: 20
Rapids(X): 1969
Rapids(Y): 1969
Rapids(Z): 1969
Travel(X): 20.1
Travel(Y): 20.1
Travel(Z): 20.1
