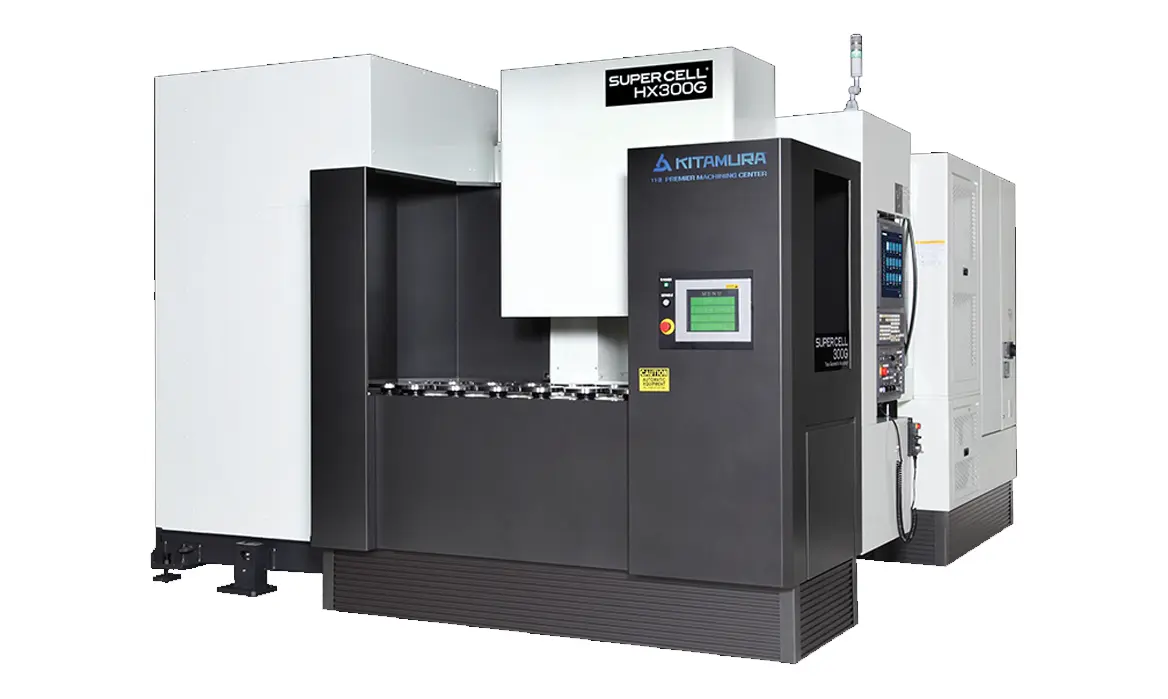

NEW KITAMURA SUPERCELL-300G

OverviewThe Supercell-300G 5-axis Horizontal Manufacturing Cell features multi-pallet and multi-tool configurations for high-mix or repeat parts, running largely unattended for maximum machine utilization.

Pallet Size: Ø7.9"
Travel (X, Y, Z): 18.1" x 20.1" x 18.1"
Travel (A, B): 150deg (-120 to +30deg), 0 to 360deg
Spindle Taper: NST No. 40
Spindle Speed: 20,000
Tool Storage Capacity: 174 Pcs. - 100, 230, 258, 314 Tools Optional
Rapid Feed (X,Y,Z): 2,362ipm
Rapid Feed (A, B): 50 min-1 (18,000 deg/min)
Power Requirement: 55KVA, 200v AC, 3 Phase

Table Size: 7.9 in.
Magazine: 174
Spindle RPM: 20,000
Spindle Taper: NST 40
Spindle HP: 30
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 18.1
Travel(Y): 20.1
Travel(Z): 18.1
