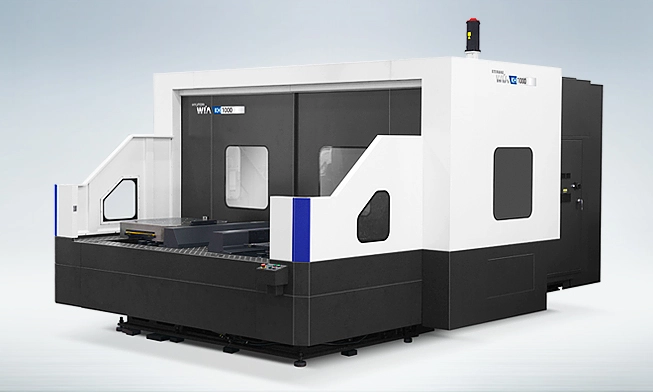

NEW HYUNDAI WIA KH1000

OverviewThe KH1000 is manufactured using the latest state-of the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Machining Centers. The KH1000 has been designed to meet the demanding requirements found in today metal working market.

Fanuc 31i-B Control
RPM 8,000 RPM Spindle with 2 speed geared head
RPM 4,500 RPM Spindle with 3 speed geared head (Option)
Powerful 26 kW (35 HP) spindle motor
Spindle Oil chiller system
BCV # 50 spindle
Fast 20m/min (787 IPM) X,Y and Z axis rapid traverse
Wide induction hardened and precision ground guide ways
8 faces contacted Y axis guide way

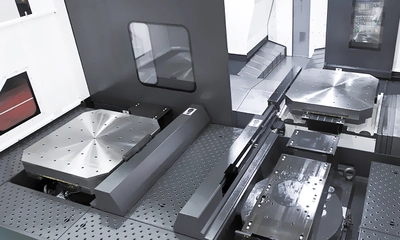

Shuttle type pallet change system
APC Safety Area Sensor
Convenient operational panel for APC
Air cleaning system on the loading station
(2) Tapped pallets (T slot_opt.)
ATC 90 Tools (120T_opt.)
1,000 PSI through the spindle coolant
Spindle override 50% to 150%
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Qualified edge locators
Dual screw type conveyors
Chip Conveyor (34" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light

Table Size: 39.3 in.
Magazine: 90
Spindle RPM: 8,000
Spindle Taper: CAT 50
Spindle HP: 35
Spindle Torque: 595.2 lbs.ft
Rapids(X): 787
Rapids(Y): 787
Rapids(Z): 787
Travel(X): 82.7
Travel(Y): 53.1
Travel(Z): 55.1
