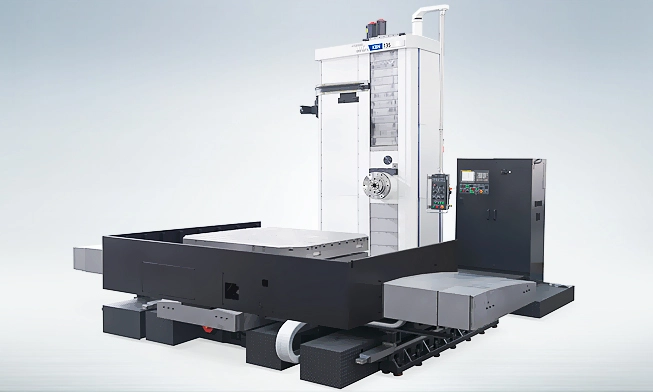

NEW HYUNDAI WIA KBN135C

OverviewThe KBN 135C is manufactured using the latest state-of-the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Boring Machines. The KBN135C, Column Moving type, has been designed to meet the demanding requirements found in today metal working market.

FANUC 31i-B control
2,500 RPM spindle with three-speed geared transmission
35 HP spindle motor
Spindle oil chiller system
CAT 50 spindle taper
W-axis spindle with 27.6 in (700 mm) stroke
Rapid traverse rates: X, Y, Z axes 394 IPM; W-axis 315 IPM
Wide induction-hardened, precision-ground guideways
Linear and rotary scales standard on all axes
Air semi-rising slideways on X and Z axes
Column-moving type structure with Y and Z axes
T-slot work table
Automatic tool changer with 60 tools
290 PSI through-spindle coolant
Oil-jacket spindle cooler
Massive Meehanite cast iron machine base
Double pre-tensioned ball screws
Rigid tapping capability
Portable manual pulse generator
Program and data protection key switch
Metered piston distributor lubrication system
Slanted telescopic way covers
Chip conveyor with 45 in discharge height
Flood coolant system with large separate coolant tank
Three-color tower signal light

Table Size: 78.7 x 70.9 in.
Magazine: 60
Spindle RPM: 2,500
Spindle Taper: CAT 50
Spindle HP: 35
Spindle Torque: 2712
Rapids(X): 394
Rapids(Y): 394
Rapids(Z): 394
Travel(X): 157.5
Travel(Y): 98.4
Travel(Z): 78.7
