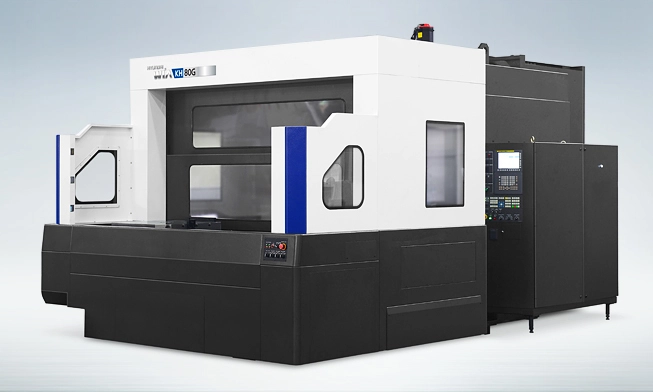

NEW HYUNDAI WIA KH80G

OverviewThe KH80G is manufactured using the latest state-of the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA's outstanding line of CNC Horizontal Machining Centers. The KH80G has been designed to meet the demanding requirements found in today metal working market.

Fanuc 31i-B Control

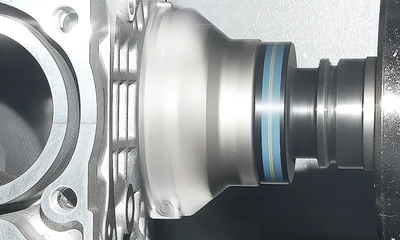

RPM 4,500 RPM Spindle with 3 speed geared head
Powerful 26kW (35 HP) spindle motor
Spindle Oil chiller system
CAT 50 taper spindle [Big Plus_Opt.]
Fast 18m/min (709 IPM) X, Y and Z axis rapid traverse
Box guide on Y axis and Roller guide for X, Z axis
Shuttle type pallet change system
Pallet rotation at pallet loading station
APC Safety Area Sensor
Convenient operational panel for APC
Air cleaning system on the loading station

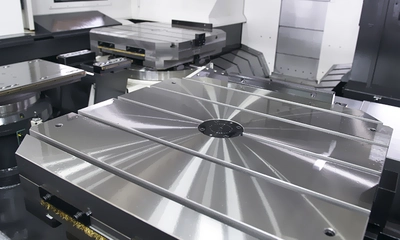

(2) Tapped pallets [T-slot_Opt.]
ATC 80 Tools [120T_Opt.]
1,000 PSI through the spindle coolant
Oil jacket spindle cooler
Massive Meehanite cast iron bed
Double Pre-Tensioned Ball screws
Qualified edge locators
Metered piston distributor lubrication
Slanted telescopic way covers
Dual screw type conveyors
Chip Conveyor (38" discharge height)
Flood coolant with large separate coolant tank
3 color tower signal light

Table Size: 31.4 in.
Magazine: 80
Spindle RPM: 4,500
Spindle Taper: CAT 50
Spindle HP: 35
Spindle Torque: 1,106.3 lbs.ft
Rapids(X): 709
Rapids(Y): 709
Rapids(Z): 709
Travel(X): 49.2
Travel(Y): 39.4
Travel(Z): 33.5
