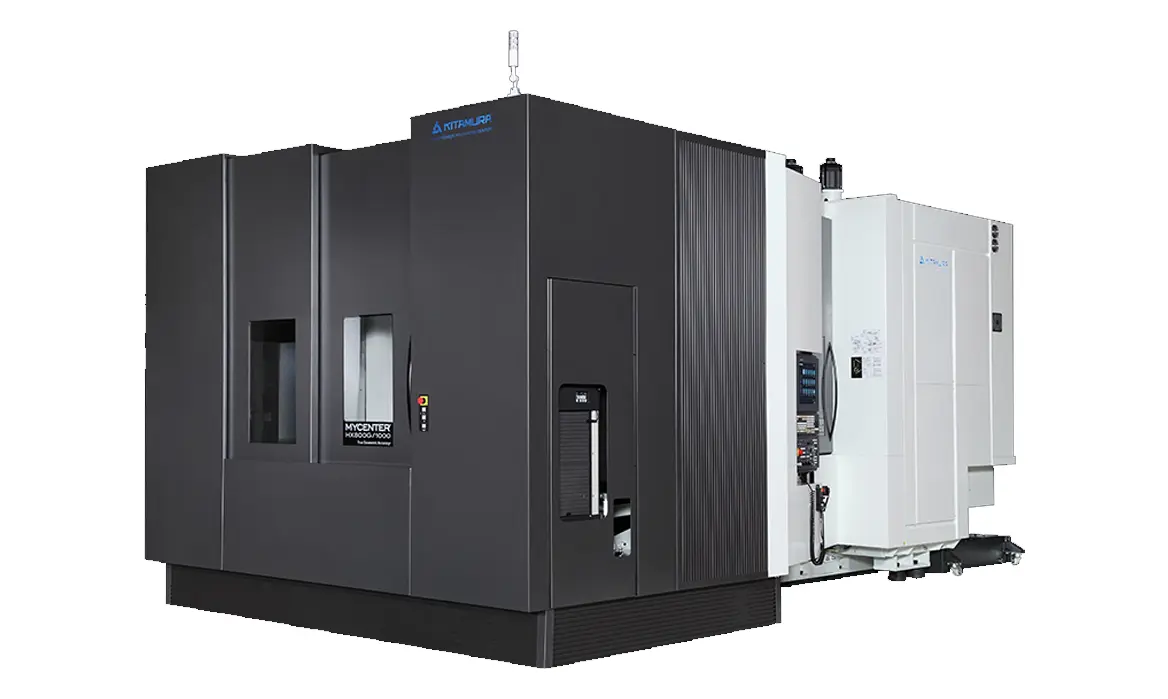

NEW KITAMURA MYCENTER-HX800G/1000

OverviewThe Mycenter-HX800G/1000 horizontal machining center is designed for high-value, close-tolerance machining of large components and fixtured tombstones. Extraordinary capacity, and superb accuracy make this an ideal choice in large capacity HMCs.

Table Size: (800 x 800mm) 31.5" x 31.5"
Travel (X, Y, Z): (1570 x 1300 x 1400mm) 61.8" x 51.2" x 55.1"
Spindle Taper: NST No. 50 (HSK-A100 Opt.)
Spindle Speed: 35~12,000 min-1 **8,000 min-1 Option; 4-Step Gear Driven
Tool Storage Capacity: 62 Pcs. - 122, 162, 212 Tools Optional
Tool Change Time (T-T/C-C): 2.1 Sec. /5.9 Sec. Minimum
Rapid Feed (X,Y,Z): 60m/min (2,362ipm)
Rapid Feed (B): 25 min-1 (9,000deg./min)
Power Requirement: 70KVA, 200v AC, 3 Phase

Table Size: 31.5 in.
Magazine: 62
Spindle RPM: 12,000
Spindle Taper: NST 50
Spindle HP: 54
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 61.8
Travel(Y): 51.2
Travel(Z): 55.1
