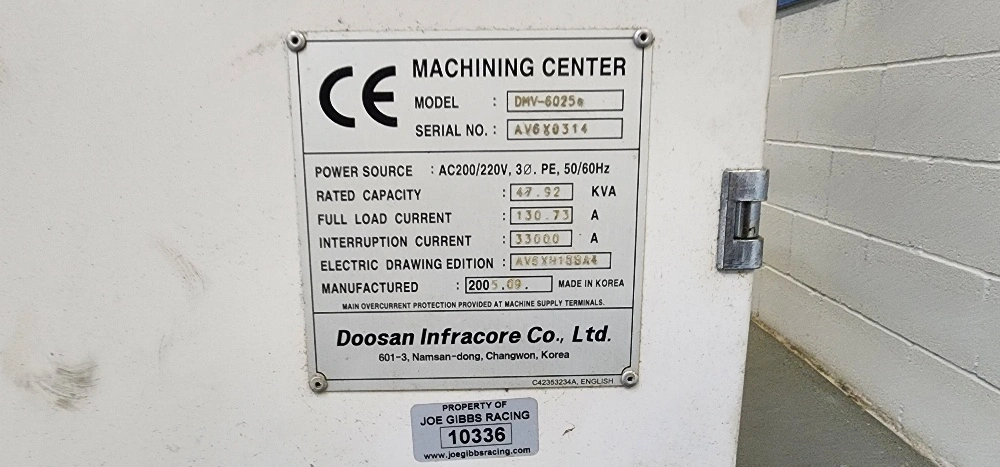

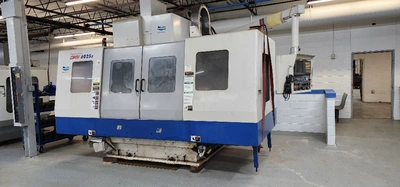

USED DOOSAN DMV6025S

Specifications:

CAPACITY:
X axis travel: 59.8 inches
Y axis travel: 25.6 inches
Z axis travel: 25.6 inches
Table size: 28.7 x 70.8 inches
Allowable table load: 4,400 pounds
Table T - slot spacing: x width (5) 4.92" x .71"

SPINDLE:
Spindle nose to table top: 7.1 to 32.7 inches
Column to spindle center: 26.8 inches
Spindle taper: ISO No. 50
Spindle speed: 20 - 4500 RPM
Spindle gear ranges: 2
A.C. spindle motor (30 min.): 30 HP
Spindle torque (30 min.): 428 ft-lbs.

AUTOMATIC TOOL CHANGER:
Number of tools: 30
Tool shank: CAT 50
Pull Stud: 316-45
Max. tool Dia. (adj. pocket full): 5.1 inches with empty adjacent pockets 9 inches
Max. tool Length: 13.8 inches
Max. tool Weight: 33 lbs.
Tool change time (tool to tool): 2.5 sec.
Tool change time (chip to chip): 6.5 sec.

MOTION:
Rapid traverse rate: 512 IPM
Maximum linear feedrate: 315 IPM
A.C. servo motors X,Y&Z: 4 HP
Feed Thrust Z axis: 3,095 lbs.

GENERAL:
Floor space required (L x W): 184 inches x 168 inches
Machine height: 141 inches
Machine weight: 27,500 lbs.
Voltage required: 205 - 235 volts / 3 phase
KVA required: 60
