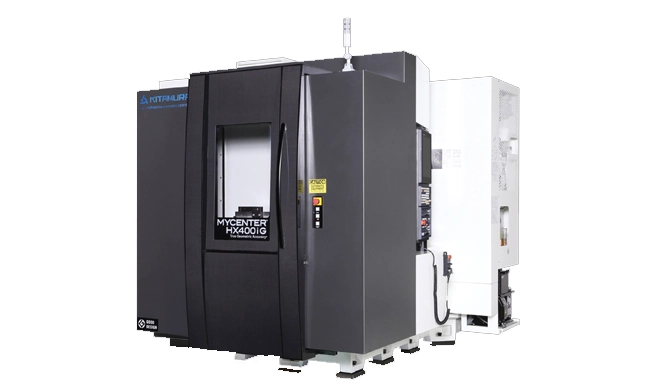

NEW KITAMURA MYCENTER-HX400IG/500

OverviewThe Mycenter-HX400iG is setting the new standard in 400mm horizontal machining centers, delivering the ultimate in state-of-the-art HMC performance. Solid box guideways are equipped with linear scale feedback on all axes for unmatched accuracy and optimum stability. A standard 2-station APC coupled with full 360 degree 4th axis capability means faster part turn around and more production per pallet load. Standard features such as the world's fastest 60m/min (2,362ipm) rapid feedrates, rear discharge hinge belt chip conveyor and numerous high-tech Icon-Drive Arumatik®-Mi control features make this space-saving mid-size HMC your go to for a variety of machining applications.

Linear scale feedback system -fine pitch, high resolution ballscrews
Positioning Accuracy: +/- 0.000078"/full stroke, Repeatability: +/- 0.000039"
Expandable, 2-station rotating pallet system
Full 4th axis rotary table with Integral motor and high-speed 125rpm (45,000deg/min) rapid feed rate
Highest grade Meehanite cast iron construction with world's fastest rapid feed rates of 2,362ipm with solid box ways
High-speed, 15,000 direct driven, dual contact spindle. Optional 20,000rpm now available!
SSS (Super Smooth Surface) control for complex contouring & mold applications
The ability to add 500mm tables in the field as an option
Maximizes Operator Convenience
Customizable for Ultimate Productivity
High Speed Processing, Super Smooth Control Process
Fanuc User-Friendly
Unlimited Lifetime Software Upgrades
Developed for Continual Advancements
Powerful, Unique Features on the 19" LCD
Customized main menu touch screens
Visual work setting screens
Maintenance Support Functions
Video Guidance
Fanuc User Friendly
Ability to run current Fanuc programs
Little to no modification to existing programs is necessary
Looks and feels like a Fanuc Control
Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function
On screen parts identification and ability to visually enlarge machine parts list
Alarm release guidance screens - Instructs where to check should an alarm occur
Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.
Kitamura Monitor/Adaptive Control
Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
1280 Meters of Memory
8GB CF/USB Data Server
700 Custom Macro Variables
102 Pairs Workpiece Coordinate System
200 Tool Offsets

Table Size: 15.75 in.
Magazine: 50
Spindle RPM: 15,000
Spindle Taper: 40 NST
Spindle HP: 15
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 24
Travel(Y): 24
Travel(Z): 24
