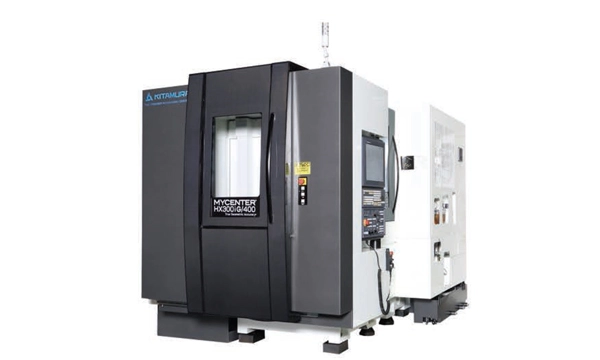

NEW KITAMURA MYCENTER-HX300IG/400

OverviewThe HX300iG provides generous work envelopes and world's fastest 60m/min (2,362ipm) rapid feeds providing machining flexibility for a wide variety of applications with unwavering reliability. The HX300iG features standard 50 tool automatic tool changer that minimizes tool change times for maximum

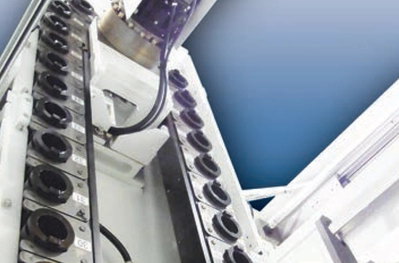

cutting time. Kitamura's exclusive fixed pot ATC system assures tools are always returned to the same pot and the next tool to be used is kept in a
"stand-by" pot. Higher capacity ATCs can be installed "in-the-field" to 200 tools. The Mycenter-HX300iG is available with an optional 6 or 8 pallet APC system for flexibility in just-in-time machining environments.

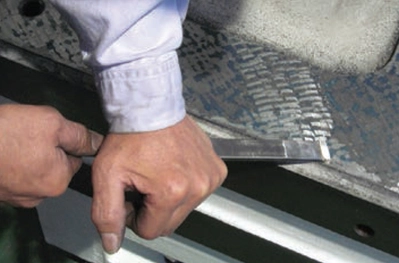

Rigid 9,100kg (20,020Lbs) Meehanite cast construction manufactured in Japan with craftsmanship in handscraping techniques

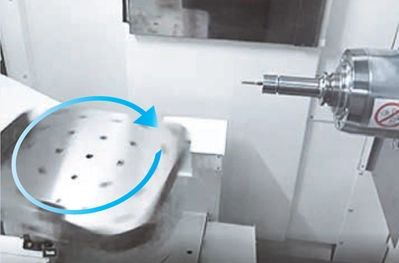

Field expandable 2-station APC with high speed 4th Axis rotary table and rotary scale. Integral drive motor driven with rapids 54,000deg/min (150min-1)
Ultra-high-speed rapid/cutting feeds, 60m/min (2,362ipm)
Ultra-high speed tool change, T-T 1.3 Seconds
High performance THK double roller linear guideway system
Powerful 15,000min-1, 30HP Direct Drive, Dual Contact Spindle.
20,000min-1 HSK spindle is an available option.
Ballscrew cooling and fine resolution linear Scale feedback in X, Y, Z axes.
Standard hinge belt style conveyor combined with dual internal chip augers = High efficiency chip evacuation
Maximizes Operator Convenience
Customizable for Ultimate Productivity
High Speed Processing, Super Smooth Control Process
Fanuc User-Friendly
Unlimited Lifetime Software Upgrades
Developed for Continual Advancements
Powerful, Unique Features on the 19" LCD
Customized main menu touch screens
Visual work setting screens
Maintenance Support Functions
Video Guidance
Fanuc User Friendly
Ability to run current Fanuc programs
Little to no modification to existing programs is necessary
Looks and feels like a Fanuc Control
Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function
On screen parts identification and ability to visually enlarge machine parts list
Alarm release guidance screens - Instructs where to check should an alarm occur
Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.
Kitamura Monitor/Adaptive Control
Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
1280 Meters of Memory
8GB CF/USB Data Server
700 Custom Macro Variables
102 Pairs Workpiece Coordinate System
200 Tool Offsets

Table Size: 12 in.
Magazine: 50
Spindle RPM: 15,000
Spindle Taper: 40 NST
Spindle HP: 15
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 18.1
Travel(Y): 20
Travel(Z): 22
