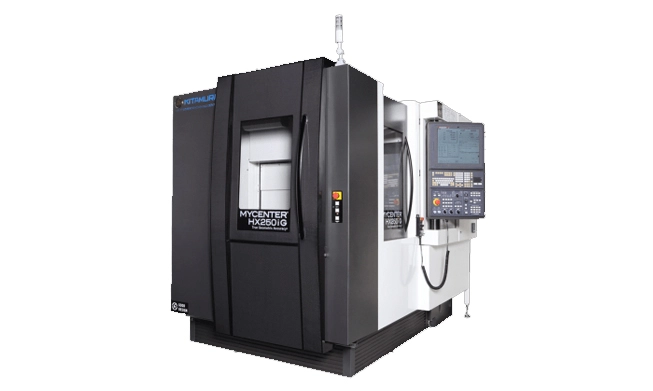

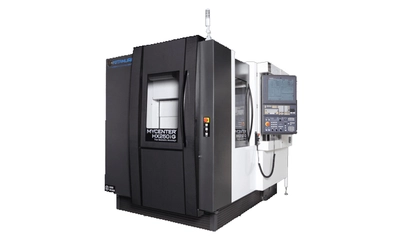

NEW KITAMURA MYCENTER-HX250IG

OverviewThe HX250iG provides generous work envelopes and world's fastest 60m/min (2,362ipm) rapid feeds providing machining flexibility for a wide variety of applications with unwavering reliability. The HX250iG features standard 40 tool automatic tool changer that minimizes tool change times for maximum
cutting time. Kitamura's exclusive fixed pot ATC system assures tools are always returned to the same pot and the next tool to be used is kept in a
"stand-by" pot. Higher capacity ATCs can be installed "in-the-field" - 102 tools for the HX250iG. The Mycenter-HX250iG is available with an optional 10-station APC system for flexibility in just-in-time machining environments.

Drastically reduces set-up times for small, detailed, highly accurate complex parts
Amazingly small footprint saves on valuable floor space
Positioning Accuracy: -/+ 0.000078" Full Stroke, Repeatability: +/- 0.000039"
Ultra high speed rapid feed rates of 2,362ipm
2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
Powerful 15,000rpm, dual contact spindle - Optional 30,000rpm HSK-E40 spindle Available
Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field
Maximizes Operator Convenience
Customizable for Ultimate Productivity
High Speed Processing, Super Smooth Control Process
Fanuc User-Friendly
Unlimited Lifetime Software Upgrades
Developed for Continual Advancements
Powerful, Unique Features on the 19" LCD
Customized main menu touch screens
Visual work setting screens
Maintenance Support Functions
Video Guidance
Fanuc User Friendly
Ability to run current Fanuc programs
Little to no modification to existing programs is necessary
Looks and feels like a Fanuc Control
Comfortable and convenient for those customers who are unfamiliar with anything else
Maintenance Support Function
On screen parts identification and ability to visually enlarge machine parts list
Alarm release guidance screens - Instructs where to check should an alarm occur
Periodic maintenance screens help to maintain optimum machine condition, offer longer machine life expectancy and reduce down time.
Kitamura Monitor/Adaptive Control
Detects tool wear and controls cutting federate automatically by monitoring live spindle load during machining.
Tool life is maximized and cycle time is shortened dramatically by adapting to the change in cutting conditions.
Additional benefits include reduction in non-cut time and the prevention of machine crashes/human error.
Standard Features, Advanced CNC Technology
High precision contour control with 1680-block look ahead, 2800/blocks per second processing speeds.
1280 Meters of Memory
8GB CF/USB Data Server
700 Custom Macro Variables
102 Pairs Workpiece Coordinate System
200 Tool Offsets

Table Size: 10 in.
Magazine: 40
Spindle RPM: 15,000
Spindle Taper: 30 NST
Spindle HP: 15
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 12
Travel(Y): 12
Travel(Z): 12
