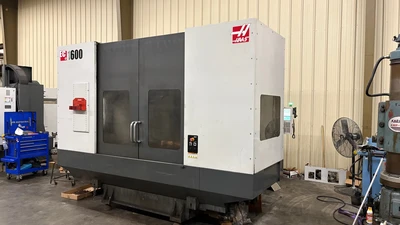

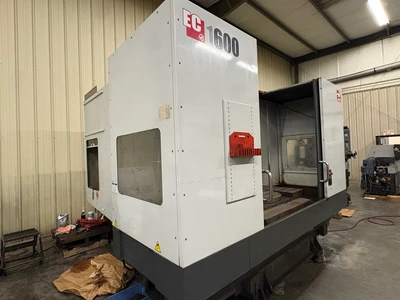

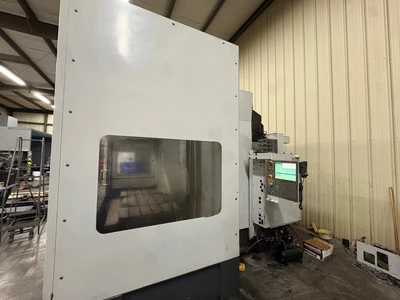

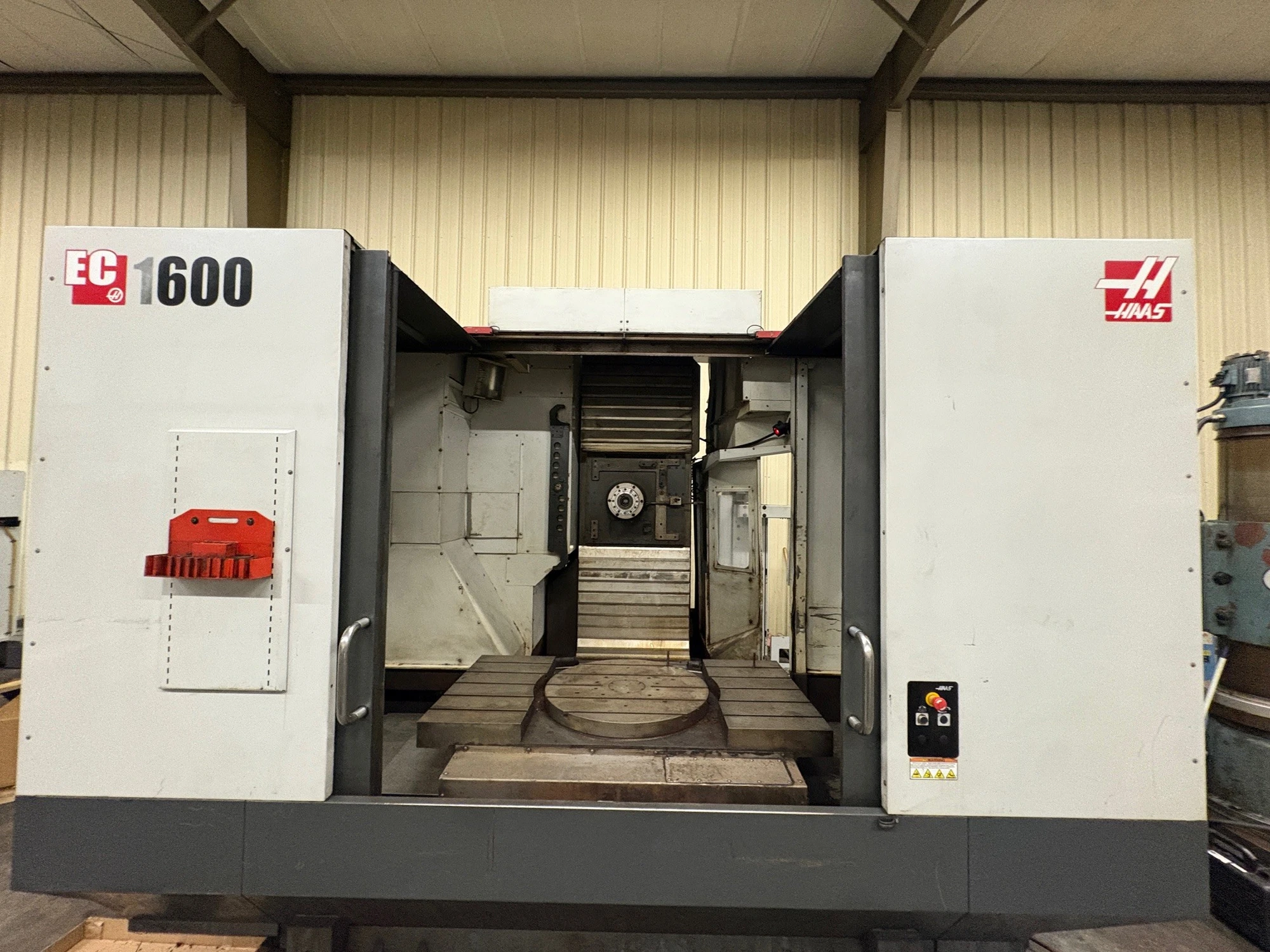

USED HAAS EC-1600

Travels:
X-Axis: 64"
Y-Axis: 50"
Z-Axis: 32"

Table:

Length: 64"
Width: 36"
Max. weight on table (evenly distributed): 10,000 lb

Spindle:

Max. Rating: 30 HP
Max. Speed: 6000 RPM
Max. Torque: 450 ft-lb @5,000 RPM
Drive system: 2-speed geared head
Taper: CT 50

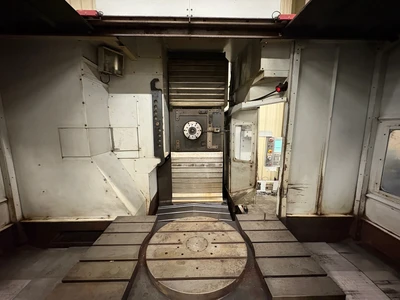

4th Axis Platter diameter: 30"

Feedrates:

Rapids on X,Y & Z: 540 in/min
Max. cutting: 500 in/min

Tool Changer:

Side Mount Type Capacity: 30+1
Max Tool Diameter (adjacent empty): 10"
Max Tool Diameter (full): 4"
Max Tool Diameter (from gage line): 20"
Max Tool Weight: 30 lb

General:

Coolant capacity: 95 gal
Voltage: 230V/3 Ph
Weight: 30,000 Lbs.

Note: New factory spindle installed 2025.
